The GY-HC900ST is the studio version of our renowned 2/3-inch broadcast camcorder. With no compromise in image quality, it offers a level of connectivity not found in any other studio camera. It features three 2/3-inch CMOS image sensors that deliver high sensitivity, low noise and wide dynamic range. When combined with the FS-900 studio fiber system, it's the ideal choice for high-end studio and EFP applications. The camera head connects directly to the FS-900 fiber back module seamlessly via a 68-pin interface, and feeds 3G-SDI signals, control, audio, sync, and intercom to the base station.
Warranty
Labor: 1 year
Parts : 2 years
Extraordinary camera Performance
The heart of the GY-HC900 is a production-quality imaging system that begins with a B4 mount lens. The camera adapts to a variety of lenses and automatically corrects for aberration. Three 2/3-inch CMOS sensors, combined with an F1.4 prism, produce full HD images with excellent sensitivity of F12 at 60Hz (extended mode) and a high SNR of 62dB (standard). JVC has paid particular attention to dynamic range and provides an HDR mode for expanded creative expression.
A 4-position optical filter compensates for a variety of lighting conditions. Positions are: 1 (clear), 2 (1/4 ND), 3 (1/16 ND), and 4 (1/64 ND).
Memory card Recording
Dual memory card slots are provided for standard SDHC/SDXC media. Flexible recording options include redundant, relay and backup modes. For contribution quality, the camera supports recording in the ProRes HD422 format to a plug-in SSD module (optional). The GY-HC900 also supports both the popular MPEG-2 35/25Mbps format, widely used by television broadcasters, and the more efficient .MOV H.264 format capable of delivering production quality 1080/60p 4:2:2 10-bit recordings. In this mode, recordings can be made at frame rates up to 120fps for ultra-smooth slow motion effects. The camera also records proxy resolution video clips for off-line editing or on-line posting.
ProRes 422 RECORDING TO SSD
Slide in an optional KA-MC100G SSD module, and record in the Apple ProRes 422 HD format. ProRes offers virtually lossless intra-frame compression and speeds up post production. The KA-MC100G accepts standard SATA M.2 SSD memory.
SSD memory can also be used for backup recording. While the Rec trigger is used to REC and STOP recording on one SD card (Slot A), the other SD card (Slot B), or "EXT" (SSD), can act as a continuous backup that overrides the pause function. A 2-terabyte SSD drive will provide over 50 hours of backup capacity when recording in the 70Mbps XHQ (.MOV) format.
The Industry's Most Connected Camera
JVC has taken connectivity to the next level with the GY-HC900. The camera incorporates a new processing engine that enables recording and low latency streaming, and simultaneous decoding for return video and IFB. Talent in front of the camera can engage in a 2-way interview with return video and audio while streaming live to air—all of this without any external boxes or backpacks. Depending on the mode, latency can be low for both outgoing and incoming video. Cellular bonding takes place with the optional snap-on SFE-CAM module, or with a Wireless LAN connection to one of our bridge units.
SRT: QoS (Quality of Service) Technology
SRT (Secure Reliable Transport) is an open source video transport protocol that enables the delivery of high-quality and secure, low-latency video across the public Internet. SRT optimizes streaming performance across unpredictable networks with secure streams and easy firewall traversal, bringing the best quality live video over the worst networks. It accounts for packet loss, jitter, and fluctuating bandwidth, maintaining the integrity and quality of your video.
SRT provides end-to-end security, resiliency and dynamic endpoint adjustment based on real-time network conditions to deliver the best video quality at all times on any network.
SRT is built-in and can be dynamically adjusted for optimal stream performance and quality. Automatic Repeat Request (ARQ) is included with SRT. End-to-end 128/256 bit AES encryption makes sure your content is protected from contribution to distribution.
SRT features
How
Details
STABILITY:
Delivers broadcast-quality video over the Internet. Resilient to network congestion, high jitter, and packet loss.
Error
Correction
ARQ
When packets are lost, the SRT decoder requests an encoder (camera) to resend lost data to eliminate potential video dropouts and artifacts. Up to 30% of data loss can be recovered.
FEC
Forward Error Correction adds redundant data to the stream to be used to recover packets lost due to unstable connection, Internet congestion, and high jitter.
SECURITY:
Protects video channel from unauthorized access. Provides extra security when moving video over public networks.
Encryption
Stream ID
The SRT decoder only accepts the streams with embedded, encoder specified Stream ID. All other streams are ignored. The single port can be utilized to receive multiple streams differentiated by unique Stream IDs.
AES
The entire SRT stream is encrypted with the industry-standard AES-128/256 standard. The "passphrase" is required on both encoding and decoding sides.
SYNCHRONIZATION:
Multicamera SRT streams synchronization for REMI.
Embedded
Timecode
NTP
Multiple cameras TC can be synchronized with the NTP server via LAN or Wi-Fi Internet connection.
LTC
End-to-end remote cameras synchronization solution with CONNECTED CAM Studio KM- IP4000/6000 series of video switchers.
VITC
Industry-standard TC compatible with Haivision, VITEC, and other decoders.
KA-EN200 H.265/HEVC Encoder
With firmware version v0300, the GY-HC900 streams using the highly efficient HEVC/H.265 compression format which delivers broadcast quality streams at 50% of the normal bitrate, or contribution quality 4:2:2 10-bit streams at higher bitrates. The optional KA-EN200 encoder is required for H.265/HEVC operation.
The GY-HC900 is equipped with Multiple-Input Multiple-Output (MIMO) Wireless LAN technology for high speed, long range communications.
For studio and EFP operation, JVC offers the flexible FS-900 camera module which attaches directly without cables and feeds a 3-in-1 base station.
Broadcast Graphic Overlays
With v0300 firmware, the GY-HC900 is now the first 2/3-inch camcorder to offer lower third and full screen broadcast graphic overlays. Graphics can be either added on-the-fly using a smartphone or tablet, or pre-loaded from an SD card. This feature allows the camera operator to generate live streams that include a television station logo, without using a separate character generator.
Three advanced 2/3-inch CMOS image sensors for high sensitivity: F12 @ 60Hz
HDR (High Dynamic Range) (Hybrid Log Gamma)
Industry standard B4 lens mount
Signal-to-noise ratio 62dB (standard)
Dual SDXC media recording
ProRes HD422 10-bit recording to optional SSD (v0300)
50 Mbps 4:2:2 10-bit recording (H.264) to SDHC/SDXC cards
Standard MPEG-2 recording up to 35 Mbps
1080p slow motion recording (120fps)
Broadcast overlay graphics (v0300)
Records Sports Exchange Standard formats (1080/720p)
Backup recording to SSD (v0300)
Direct connection (68p) to fiber module
3G-SDI (x2) outputs
3G-SDI input for pool feed
HDMI output
Ethernet LAN (RJ45)
USB host for network function
Time code IN/OUT
Genlock input
XLR audio input (x3) and output
DC Power out connection (x3)
Remote control (via direct connect or network)
Slot for wireless audio module
Slot for future expansion
Technical Specifications
Product Support
Technical Specifications
Camera Front-End Specifications
Image Sensor (inch)
2/3-inch CMOS
Number of Sensors
3
Mega Pixels
2,2
Sensitivity in F at 2000 Lux
F 12
S/N in dB
62
Synchronization External
Yes, and internal
Genlock
Yes
Shutter speed
1/3 to 1/1000, AUTO
Color Matrix adjustment
Yes
HDR (High Dynamic Range)
Yes
LOG Mode
Yes, J-LOG HLR
Optical Specifications
Lens mount
B4
Built-in ND Filters
3 Filters: 1/4, 1/16, 1/64
Recording Formats
Media
SDHC/SDXC memory card x 2
SSD recording option
Yes
Media Class
HD: Class 6/10 SD/Web: Class 4
Recording slots
2
File Format MOV
Yes
File Format MP4
Yes
File Format MXF
Yes
Video Codec MPEG2 Long GOP
Yes
Video Codec MPEG4 AVC/H264 4K/HD
Yes
Video Codec H264 (SD)
Yes
Recording specials
4:2:2 HD Record (H.264,50Mbps), 120Fps Slomo
Simultaneous recording on 2 cards
Yes
Simultaneous recording in 2 modes
Yes
Resolution 1920 x 1080
Yes, 60p/50p/30p/25p/24p/60i/50i
Resolution 1280 x720
Yes, 60p/50p/30p/25p
Resolution 720 x 576
Yes, 50i
Resolution 720 x 480
Yes, 60i
Resolution 640 x 360
Yes, 60p/50p/30p/25p
Resolution 480 x 270
Yes, 30p/25p/24p
High Speed Recording
Yes
High Speed Recording Modes
120Fps
Recording Data rate 1
1920x1080 MPEG-4 AVC/H.264 10 Bit 4:2:2 35MBit to 50 MBit
The BPL-210 uses Load Balancing and SpeedFusion bandwidth bonding to deliver superfast video streaming and data using an SD-WAN enabled network.
BPL-380
The BPL-380 is a multi-WAN router (1U rackmount) that handles up to 20 cellular VPN uplinks. Using SpeedFusion™ bandwidth bonding technology, it aggregates multiple cellular and Wi-Fi links into a virtual LAN connection.
CB900
GY-HC900 shipping case has a retractable telescopic handle and wheels, and provisions for tripod plate, batteries, and camera-mounted EVF.
CTC900
Soft carry bag for the GY-HC900 camcorder w/EVF, tripod plate adapter and accessories. Includes a shoulder strap, stabilizing block and white balance card.
DT-X93H
The ProHD DT-X93H monitor is an upgraded 9-inch LCD monitor with 1920 x 1200 high resolution and H/V 170° viewing angle. The monitor supports 2K/3G/HD/SD-SDI, HDMI and CVBS input, with embedded audio meters display, peaking focus assist, various scale markers and GPI control interface for professional HD video production monitoring. The DT-X93H can be powered via 4-pin XLR 6.5-24V DC input or V-mount / Gold mounts.
FS-900
The FS-900 is a new camera mounted Fiber optic system designed for JVC's GY-HM890 and GY-HC900 camcorders. Built exclusively for JVC by MultiDyne® Video & Fiber-Optic Systems, the system supports 3G-SDI 1080p/60 camera feeds and returns, and takes advantage of the camera's built-in streaming engine for video-over-IP functionality.
FS-900BS1N
The FS-900BS1N (Neutrik Opticalcon) and FS-900BS1S (SMPTE) are the base stations for JVC's unique 3-in-1 fiber optic system designed for JVC's GY-HM890 and GY-HC900 camcorders. The system supports 3G-SDI 1080p/60 camera feeds and returns, and takes advantage of the camera's built-in streaming engine for video-over-IP functionality.
FS-900BS1S
The FS-900BS1N (Neutrik Opticalcon) and FS-900BS1S (SMPTE) are the base stations for JVC's unique 3-in-1 fiber optic system designed for JVC's GY-HM890 and GY-HC900 camcorders. The system supports 3G-SDI 1080p/60 camera feeds and returns, and takes advantage of the camera's built-in streaming engine for video-over-IP functionality.
FS-900BS2N
The FS-900BS2N (Neutrik Opticalcon) is the base stations for JVC's unique 2-in-1 fiber optic system designed for JVC's GY-HM890 and GY-HC900 camcorders. The system supports 3G-SDI 1080p/60 camera feeds and returns, and takes advantage of the camera's built-in streaming engine for video-over-IP functionality. Up to two cameras are supported by each base station.
FS-900CAM1N
The FS-900 is a new camera mounted Fiber optic system designed for JVC's GY-HM890 and GY-HC900 camcorders. Built exclusively for JVC by MultiDyne® Video & Fiber-Optic Systems, the system supports 3G-SDI 1080p/60 camera feeds and returns, and takes advantage of the camera's built-in streaming engine for video-over-IP functionality.
FS-900CAM1S
The FS-900 is a new camera mounted Fiber optic system designed for JVC's GY-HM890 and GY-HC900 camcorders. Built exclusively for JVC by MultiDyne® Video & Fiber-Optic Systems, the system supports 3G-SDI 1080p/60 camera feeds and returns, and takes advantage of the camera's built-in streaming engine for video-over-IP functionality.
HZ-AS1
Servo-Zoom operation unit for Canon and Fujinon ENG Lenses
HZ-FR15G
HZ-FR15G its a Manual Focus grip for CANON or FUJINON Optics
IA-70A
The IA-70a is a single output 70W power supply with a universal AC100˜240V input for worldwide operation. The IA-70a features a lightweight, rugged metal enclosure, built-in carrying handle, adjustable output voltage and automatic overload protection. 4-pin XLR power supply connector cable (10 ft), CA4XLR-B, is sold separately.
KA-551U
The JVC KA-551U Tripod Adapter Plate is a V-wedge tripod plate used for efficient, quick-release mounting of JVC ProHD camcorders on heavy-duty professional tripods.
KA-EN200
H.265/HEVC streaming slot-in adapter
for CONNECTED CAM GY-HC500/GY-HC900 series.
Up to 24Mbps always better image performance.
KA-MC100G
This caddy allows SATA SSD M.2 media* to be used with the GY-HC500/550/900 camcorders.
*Media not included
KJ20X82BIRSD
The KJ20x8.2B is Canon's widest (8.2 mm) lens in the affordable 20x zoom class, and it covers a generous range of focal lengths, particularly when combined with its built-in 2x extender expanding its 8.2mm-164mm focal length to 16.4mm-328mm.
MS-01
The Fujinon MS-01 is a semi-servo kit consisting of the SRD-92B zoom servo demand, CFH-3 focus handle/grip

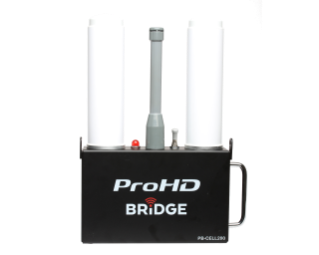

PB-CELL200
Carry it anywhere! This portable bridge is a powerful bonded cellular hotspot that features Peplink's patented SpeedFusion™ technology that allows you to reliably stream your JVC camcorder signals to any destination on the internet. Unlike typical bonded solutions, the PB-CELL200 enables you to stream live video from multiple cameras to HD-SDI decoders or servers at a central location.
RM-LP25
This console remote unit provides key operation of the camera when connected in a fiber or multicore set-up using the Studio Adapter and CCU
RM-LP250M
The RM-LP250M is a multi-camera IP based remote control panel for up to 3 CONNECTED CAM (GY-HC500 & GY-HC900) models.
RM-LP250S
The RM-LP250S is a single-camera IP based remote control panel for JVC's CONNECTED CAM (GY-HC500 & GY-HC900) models.
SAK-LCD9
This bracket is designed for the DT-X 9-inch LCD Monitors and allows the monitor to be mounted on top of JVC professional camcorders for use as a studio viewfinder with JVC professional cameras.
SK-900J
General Mount Kit for VF-HP900 Studio Viewer
SMX-100
The SMX-100 is a high quality stereo shotgun microphone. Designed for broadcasters, videographers and audio professionals, the SMX-100 offers wide frequency response in a compact, lightweight camera-mount design.
75-meter (246 ft) SMPTE Hybrid Fiber Cable with SMPTE Connectors
VCPFS900
The VCPFS900 VF cabling solution for both 7-inch and 9-inch DTX Series monitors provides video, power, return video and tally connectivity for FS-900 systems.

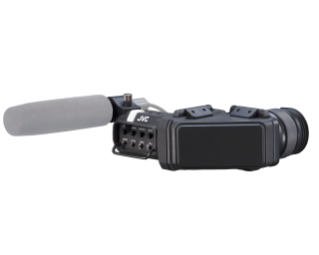

VF-E900G
