4K NDI/HEVC WIDE ANGLE PTZ CAMERA with 3G-SDI/HDMI/IP OUTPUT (BLACK)

KY-PZ400NBU

The new 4K KY-PZ400NWU camera provides optimal streaming image quality and performance for remote production over the internet and is equipped with NDI®|HX and SRT streaming, H.265/H.264/MJPEG encoding, and VITC (Vertical Interval Timecode) multi-camera synchronization technologies.

  • NDI|HX Protocol
  • Resolution 3840 x 2160
  • SRT Protocoljavascript:;
  • H.265 Codec

Warranty

Labor: 1 year

Parts : 1 year

Wide Horizontal Angle of View: 71°

Wide horizontal anfle is good for use in offices, calssrooms, studios and houses of worship.

Powerful Optical Zoom: 12X

A performer's technique can be captured cearly, even in a large hall.

Optical Zoom 12x
f= 4.4mm – 52.8mm
Approx. 26.4mm – 316.8mm
(35mm equivalent)
Digital zoom: 16x

Quality Streaming with NDI® and SRT

For reliable, stable streaming, the camera features various QoS capabilities.

NDI®|HX is a high quality, low latency IP video transmission standard pioneered by NewTek.

SRT advanced streaming uses automatic repeat request (ARQ) and forward error correction (FEC) to prevent packet loss typical for internet connections. SRT also offers stream encryption for content protection.

H.264/H.265/Motion JPEG and Dual Streaming

In addition to H.264, a video codec used in PCs, smartphones, or tablets, H.265 is also supported. Moreover, the dual streaming capability enables workflows such as editing videos with low load using low-resolution substreams and simultaneously generating edited videos with high-resolution mainstreams.

2-Color Tally Useful for Studio Shooting

A tally LED is available on top of the lens mount. It lights in either red or green depending on the mode, allowing you to easily check the program status or standby mode even while camera is panning.

On-Site IP Studio System

Installing KY-PZ400N cameras in the studio enables programs to be produced by a small number of people.

  • 1/2.5-inch CMOS sensor (8.51 million pixels)
  • Can memorize 255 preset settings and positions
  • Multiple protocol streaming SRT, RTSP, RTMP, RTMPS
  • Simultaneous high (4K) and low resolution encoding with main and sub stream
  • LAN connector supports Power over Ethernet (POE)
  • Compatible with RM-LP100 controller using JVC protocol and API
  • 3G-SDI and HDMI 2.0 (4K) digital outputs
  • Remote control via RS232, RS485 and JVC IP protocol
  • Ships with IR controller, mounting bracket, power adapter & RS232 cable
  • Still image capture
Technical Specifications
Product Support
Technical Specifications
Camera Front-End Specifications
Image Sensor (inch)
1/2,5 Inch CMOS
Number of Sensors
1
Mega Pixels
8.51
S/N in dB
55
Min. Illumination
0.5Lux
Shutter speed
1/30 to 1/10000
Optical Specifications
Lens mount
Internal
Optical Zoom x times
12
Dynamic Zoom x times
16
Lens F Number
1.8 to 2.6
Lens ratio from / to
4.4mm to 52.8mm
Auto Focus
Yes
PTZ Head Features
PAN Angle in degree +/-
170
PAN Speed with AC Adapter max degree/sec.
100
PAN Speed with POE+ max degree/sec.
100
TILT Angle in degree
-30 to 90
TILT Speed with AC Adapter max degree/sec.
69.9
TILT Speed with POE+ max degree/sec.
69.9
Preset Positions
255
Recording Formats
Encoder
H.265/H.264/MJPEG
Resolution 3840 x 2160
Yes, 29.97p, 25p , 23.98p
IP Section of the Product
IP Main Connection
Ethernet LAN RJ45 1000Base-T with POE+
IP Connection supports
Ethernet
IP Features Live-Streaming
Yes
IP Features Remote
Yes, via RM-LP100 or Web-Browser no apps needed
H.265 Codec
Yes
Live-Streaming Bitrates
1~58 Mbit/s
Live-Streaming Protocols
SRT, RTMP, RTMPS, RTSP
SRT Protocoljavascript:;
Yes
Live-Streaming Single cast
Yes
Live-Streaming Multicast
Yes
Input / Output Connections
OUT HDSDI
Yes, 3G HDSDI
OUT HDSDI Format max.
1080/60p,50p
OUT HDMI
Yes
OUT HDMI Format max.
1920x1080 60/50p
OUT Audio Line
Yes, 1 times 3.5mm mini jack
PTZ Serial Interface RS-232C in/out
Yes, over 8 PIN mini DIN
PTZ Supported Protocols
Serial, PelcoD, IP JVC, IP others
Power and Enviroment Spec´s
Power DC
Yes, 12 Volt or 42V to 57V POE+ over Network LAN
Power consumption
12W
Operation Temperature in Celsius degrees
0 to 40
Storage Temperature in Celsius degrees
-40 to 60
Included Accessories
AC/DC adapter
Yes
Cable 2
Yes, RS232 Cable
Instructions
Yes, User Manual, Warranty Card
Additional
Yes, Ceiling mounting bracket
Ceiling mount bracket
Yes
Product Support
INSTRUCTIONS(Installation/IP Address Settings)English2021America,Europe1.73MBViewDownload
INSTRUCTIONSEnglish2021America,Europe1.69MBViewDownload
INSTRUCTIONS(Installation/IP Address Settings)English2022America,Europe1.98MBViewDownload
INSTRUCTIONSEnglish2021America,Europe1.38MBViewDownload
INSTRUCTIONS(Installation/IP Address Settings)English2021America,Europe1.57MBViewDownload
INSTRUCTIONSEnglish2022America,Europe1.70MBViewDownload
SeparateVolumeEnglish2022America0.29MBViewDownload
INSTRUCTIONS(Installation/IP Address Settings)English2022America,Europe1.82MBViewDownload
SeparateVolumeEnglish, French, Spanish, German, Italian, Russian, Simplified Chinese2022America,Europe,Asia and Oceania,Japan0.71MBViewDownload
INSTRUCTIONSFrench2021America,Europe1.38MBViewDownload
INSTRUCTIONSFrench2021America,Europe1.69MBViewDownload
INSTRUCTIONSFrench2022America,Europe1.69MBViewDownload
INSTRUCTIONSGerman2021America,Europe1.62MBViewDownload
INSTRUCTIONSGerman2021America,Europe1.31MBViewDownload
INSTRUCTIONSGerman2022America,Europe1.63MBViewDownload
INSTRUCTIONSItalian2021America,Europe1.30MBViewDownload
INSTRUCTIONSItalian2021America,Europe1.61MBViewDownload
INSTRUCTIONSItalian2022America,Europe1.62MBViewDownload
INSTRUCTIONSRussian2021America,Europe1.42MBViewDownload
INSTRUCTIONSRussian2021America,Europe1.72MBViewDownload
INSTRUCTIONSRussian2022America,Europe1.75MBViewDownload
INSTRUCTIONSSpanish2021America,Europe1.65MBViewDownload
INSTRUCTIONSSpanish2022America,Europe1.65MBViewDownload
INSTRUCTIONSSpanish2021America,Europe1.34MBViewDownload

Accessories

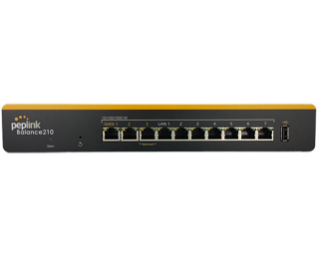

  • BPL-210

    The BPL-210 uses Load Balancing and SpeedFusion bandwidth bonding to deliver superfast video streaming and data using an SD-WAN enabled network.

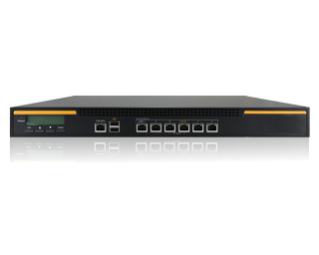

  • BPL-380
