Education

SMART Auto Tracking

SMART (Subject Movement And Recognition Tracking) technology provides multiple auto-tracking modes that can be tailored for different types of presentations on stage. This enables customized hands-free operation for the best experience by your viewing audience. Power over Ethernet (PoE) connectivity to the IP streaming switcher enables economic and efficient system integration.

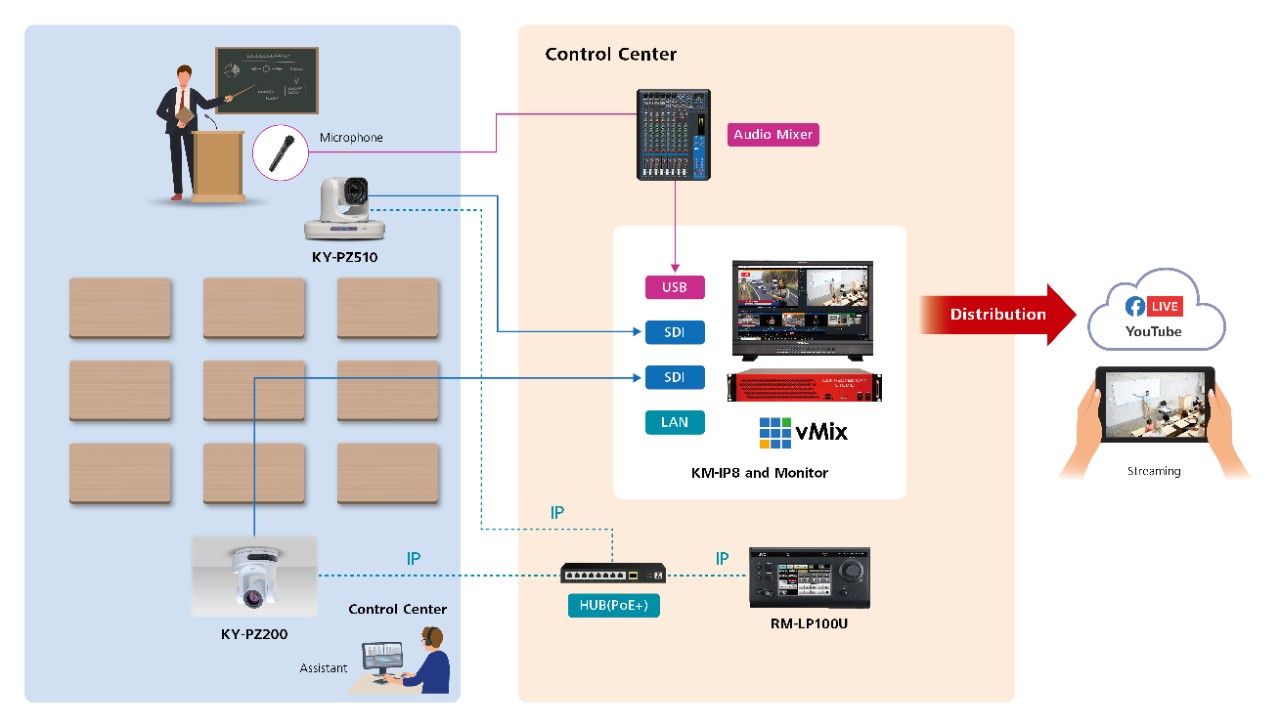

■ Purpose : Streaming classes

■ Camera : 1 x for shooting whiteboard, 1 x for classroom.

■ Audio : 1 x Microphone for Presenter

■Distribution : The assistant can operate the switcher and stream video to YouTube, etc.

■ System List

ModelDescriptionQuantity
KY-PZ510 Series4K PTZ REMOTE CAMERA (80-degree FOV)1
KY-PZ200 SeriesHD PTZ REMOTE CAMERA (20x Optical Zoom)1
KM-IP8S48-NDI and 4-SDI NPUT vMix STUDIO SWITCHER1
Monitor for KM-IP81
RM-LP100URemote Control-Panel 1
Audio SystemAudio Mixer1
Microphone1
NetworkHUB(PoE+)1
LAN Cable(Category 5e)

■ Casebook

See more

■ System Products

  • KY-PZ510NWUNEW

    NDI HX3 / 4K 60p50p / SRT / RTMPS / HEVC / H.265 / 80-degree FOV / Auto Tracking / USB UVC Cam

  • KY-PZ510WUNEW

    4K 60p50p / SRT / RTMPS / HEVC / H.265 / 80-degree FOV / Auto Tracking / USB UVC Cam

  • KY-PZ510BUNEW

    4K 60p50p / SRT / RTMPS / HEVC / H.265 / 80-degree FOV / Auto Tracking / USB UVC Cam

  • KY-PZ200NWU

    NDI HX / HD 60p50p / SRT / RTMPS / HEVC / H.265 / 60.7-degree FOV / 20x Optical Zoom

  • KY-PZ200NBU

    NDI HX / HD 60p50p / SRT / RTMPS / HEVC / H.265 / 60.7-degree FOV / 20x Optical Zoom

  • KY-PZ200WU

    HD 60p50p / SRT / RTMPS / HEVC / H.265 / 60.7-degree FOV / 20x Optical Zoom

  • KY-PZ200BU

    HD 60p50p / SRT / RTMPS / HEVC / H.265 / 60.7-degree FOV / 20x Optical Zoom

  • KM-IP8

    Optimal for switching live programming in SD up to full HD 1080 60P, KM-IP8 provides a minimum of 8 NDI HX inputs at 1080 60p using vMix 4K licensed software. This product becomes a significant part of JVC's live IP production workflow solution.

  • KM-IP8S4

    Optimal for switching live programming in SD up to full HD 1080 60P with vMix 4K licensed software. KM-IP8S4 provides a minimum of 8 NDI HX inputs and 4-SDI inputs (up to 1080p60). This product becomes a significant part of JVC's live IP production workflow solution.

  • RM-LP100

    This advanced controller connects to your network and provides complete IP control of cameras in your facility or anywhere in the world through the internet.

  • RM-LP350G

    Desktop vMix control surface adds tactile controls and a traditional production switching interface to a vMix GO or any system running vMix software.

  • RM-LP450G

    The RM-LP450G can increase the speed of your live playback workflow. Slow-motion controller for the JVC vMix studio switchers. 　

  • RM-LP5G

    This compact joystick controller connects to your network and provides complete IP control of cameras in your facility or anywhere in the world through the Internet.
