Monitor with DVD Receiver

KW-V250BTM Archived

DVD/CD/USB Receiver with 6.2-inch Clear Resistive Touch Control Monitor (6.2" WVGA) and Built-In Bluetooth® Wireless Technology


  • Built-In Bluetooth
  • K2 Technology
  • Screen Size
  • 2 Phones Full-Time Connection
  • Auto Pairing
  • JVC Streaming DJ
  • 1.5A  (5.0VDC) Max. Power Supply Current
  • Pre-output Level/Impedance
  • RGB Input for 3rd Party Navigation
  • Rear view camera Input
  • Touch Panel
  • Key Customize
  • Learning Direct OEM Remote
  • Escutcheon / Trim for 200mm console
  • Music Sync. Effect
  • Remote Control Application
  • iPod/iPhone Music Playback
  • DivX(R) Compatible
HIGHLIGHTS

Key Customize

Two options let you easily access frequently used functions.

1. Function Menu Customization

Functions registered in the Function Menu can easily be called up by simply pressing the "FNC" key.



2. Favorite Key

Press and hold the “FNC” key to directly access the function registered for the Favorite Key.


Clear Resistive Touch Panel Display

The clear resistive touch panel with high transparency and high luminance provides bright images with vivid colors.


Music Sync. Effect

Changes illumination patterns according to the rhythm of the music. Illumination key colors can be preset the way you like.


Monitor Touch Control

Just touch and move your finger over the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.

Bluetooth®  WIRELESS TECHNOLOGY

2 Phones Full-Time Connection

You can connect two phones full time via Bluetooth, with secure and simple pairing.
Calls to either phone can be received by a push of a key on the receiver.

2 Phones Full-Time Connection

iPhone Bluetooth Automatic Pairing

Just connect your iPhone via USB and the automatic Bluetooth pairing function will work to complete the pairing. No complicated manual procedure to worry about.


Streaming Music

Listen to popular music applications and music stored on your device with basic audio controls.

* Native music app control services like Spotify have now been discontinued by the service provider, so please select the Bluetooth audio source for music playback and basic control.


Bluetooth Voice Recognition

Improved Sound Quality with HFP 1.6

Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.


Bluetooth AVRCP1.5 for Versatile Song Selection

In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.


JVC Streaming DJ

Connect up to 5 Bluetooth devices simultaneously, allowing you and your friends to take turns streaming music like a DJ.
Move to the groove and get the party pumping to the max.

JVC Streaming DJ
SOUND OPTIMIZATION

K2 Technology for Enhanced Digital Sound Quality

K2 is a JVC original technology that reproduces the original master sound by expanding the frequency range.
For example, K2 will expand the digital data of the audio CD recorded at 44.1kHz to 192 kHz. It is also possible to recreate the high-frequency range above 20kHz that is cut during the CD formatting.

K2 Technology

Time Alignment

By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

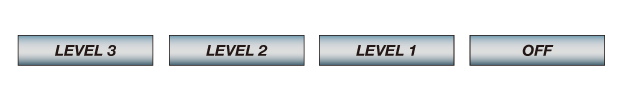

Sound Response

Cancels time distortion to create clearer sound during the playback of compressed audio files.

Sound Response

Space Enhancement

Space Enhancement is a virtual surround technology using 2 speakers. Just select the vehicle size, and the head unit automatically adjusts the sound effectively.

Space Enhancement

Sound Lift

Virtually manipulate the height of the speakers by adjusting the sound frequencies.


Volume Link EQ

Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.

Volume Link EQ

13-Band Equalizer

Use the 13-Band Equalizer to manually adjust the sound to your taste.


USB

High Current 1.5A Charging

Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A.
*Compatibility depends on the smartphone.

GENERAL

Remote Control App

Control the receiver's source directly from the smartphone using simple finger gestures with "JVC Remote" app* (now available for both iOS and Android). You can even customize your audio setting, and see detailed source information such as song title, artist name and album art etc. from the smartphone.

*JVC Remote App
 For more information, visit
www.jvc.net/car/app/jvc_remote/

Rear View Camera Ready

The Rear View Camera input allows you to connect an optional rear view camera (sold separately).
Rear view cameras allow you to safely back up your vehicle, monitor towing, and more.

  • Waterproof design
  • 1/4" color CMOS sensor with effective 380,000 pixels
  • Flexible mounting bracket included
  • Camera dimensions (WxHxD): 23.4mm x 23.4mm x 23.9mm
  • Weight: 21g (Camera only)


Direct OEM Steering Remote Function

No need for a third party adapter for most Japanese/Korean cars. Click here for details.


4.0V High-Voltage 3 Pre-Outs

Equipped with three RCA terminals for pre-outs with 4.0V high voltage. Increasing the output voltage from the pre-outs helps reduce transmission noise and distortion when connected with an external amplifier.


NAVI Input

You can connect an external navigation unit (commercially available) to the NAVI input terminal so that you can view the navigation screen.


200mm Trim Plate Included

Provided with a 200mm escutcheon exclusively designed for TOYOTA cars. It provides a perfect fit when installed on the console.


Remote Control (Included)

Technical Specifications
Manuals
Technical Specifications
Monitor
Screen Size
6.2" Wide VGA
Key Customize
Yes
Touch Panel
Clear Resistive
Music Sync. Effect
Yes
Gesture Touch Control
Yes
Key Illumination Colour
White
Dimmer
Yes
Multilingual Display
Yes (English / Spanish / French / German / Italian / Dutch / Russian / Portuguese / Chinese (Simplified) /Chinese (Traditional) / Korean / Thai / Turkish / Arabic / Persian / Hebrew / Greek / Malay / Indonesian / Polish / Czech / Hungarian)
Viewing Angle Adjustment
Yes (0 - 20 degree, default : 0 degree) 5 steps
Radio Tuner
Radio Data System (RDS)
Yes
FM Frequency Range
87.5-108.0MHz
AM Frequency Range
(MW)531-1,602kHz
Preset Stations
20 (5ch x 4band)
Auto Memory Entry
Yes
Media Playback
MP3 Compatible with Tag
CD / DVD / USB
WMA Compatible with Tag
CD / DVD / USB
WAV Compatible with Tag
CD / DVD / USB
AAC Compatible with Tag
USB
FLAC Compatible with Tag
USB( Up to 96kHz/24bit )
MPEG-1 / MPEG-2 Compatible
CD / DVD / USB
DivX(R) Compatible
CD / DVD / USB
USB
USB Port
x1 (USB2.0 Full Speed/High Speed)
Location
Front
1.5A (5.0VDC) Max. Power Supply Current
Yes
CD Player
CD-R/RW Compatible
Yes
DVD Player
Video CD Playback
Yes
DVD-R/-RW, +R/+RW Compatible
Yes
Bluetooth®
Built-In Bluetooth
Yes (Ver 3.0, Wired-Mic included)
*Available functions depend on mobile phone.
Voice Dialing
Yes
* Voice recognition compatible mobile phone required
Siri Eyes Free Mode for iPod/iPhone
Yes
Remote Control Application
Yes
Hands Free Call (HFP)
Yes (HFP1.6)
Audio Streaming & Control (A2DP, AVRCP)
Yes
Phone Book Access Profile (PBAP)
Yes
Alphabetical Search for Phone Book
Yes
2 Phones Full-Time Connection
Yes
JVC Streaming DJ
Yes
Auto Pairing
Yes (iPhone only)
iPod/iPhone Control
iPod/iPhone Music Playback
Yes
Audio
Maximum Power Output (Front & Rear)
50Wx4
Full Bandwidth Power (Front & Rear)
22W x 4 (Full Bandwidth Power, at less than 1% THD)
K2 Technology
Yes
13-Band Graphic EQ
Yes
Preset EQ
Yes (10Preset + 1user)
Volume Link EQ
Yes
3-Way X'over
Yes
High-Pass Filter/Low-Pass Filter
Yes/Yes
Time Alignment
Yes
Space Enhancement
Yes
Sound Response
Yes
Sound Lift
Yes
Bass Boost
Yes
Inputs and Outputs
Pre-Out Terminals
3 Pairs (Front + Rear + Subwoofer)
Pre-output Level/Impedance
4.0V / 10k ohms
Subwoofer Output with Level/Frequency Control
Yes
AV Input
mini jack
Video Out
RCA
RGB Input for 3rd Party Navigation
JVC compatible Navi box
Rear view camera Input
Yes
General
Wireless Remote Control
Yes
Wired Steering Remote Control Ready
Yes
Learning Direct OEM Remote
Yes
Escutcheon / Trim for 200mm console
Yes
Installation Size (W x H x D)
178 x 100 x 162mm
Weight
1.7kg
Unit weight in individual package
2.6 kg
