ProHD SHOULDER CAMCORDER HEAD

GY-HM890CHU

Be first On-air and first On-line with JVC's new GY-HM890CHU. This advanced 3-CMOS camera delivers pristine HD images to solid state memory while streaming via optional Wi-Fi® or a plug-in LTE modem. It features 4 channels of audio, dual memory card recording at up to 50 Mbps, an external HD-SDI pool feed input, and a full complement of fiber and multicore studio options. It's the most feature-rich HD camera JVC has ever offered.

  • ProHD Logo
  • OUT HDMI
  • File Format MOV
  • File Format MXF
  • IP Features FTP
  • SDHC Logo
  • Media Class
  • File Format AVCHD

Warranty

Labor: 2 years

Parts : 1 year

  • 1/3-inch 12-bit CMOS sensors (1920 x 1080 x 3)
  • F11 sensitivity
  • Compact shoulder design with interchangeable lens options
  • Dual SDHC/SDXC memory card recording (HD+HD, HD+SD, HD+web, etc.)
  • Multiple file formats for native workflows: XDCAM EX™ (.mp4), Final Cut (.mov), AS-10 (.mxf), AVCHD (.mts), H.264 (.mov)
  • Virtually lossless H.264 50Mbps recording
  • 4 Position ND Filter (Clear, 1/4, 1/16, 1/64)
  • 0.45-inch LCOS Viewfinder
  • High-Resolution 4.3-inch LCD Monitor
  • Histogram Display and Expanded Focus Functions
  • Focus Assist Function
  • 12 assignable user buttons
  • Variable Frame Rate Recording (Over Cranking, Under Cranking)
  • Wired Remote Control Operation
  • Genlock Input and TC Input/Output
  • HD/SD-SDI external input for recording and streaming (pool feed)
  • 4-Channel Audio System
  • Full complement of Fiber or Multicore studio accessories
  • Secure FTP File Transfer from Shooting Location
  • Tablet or Smartphone Camera Control and monitoring
  • Metadata Editing via Network
  • Advanced Streaming and Cloud Services Delivers reliable HD streams without a backpack or microwave link
Technical Specifications
Product Support
Technical Specifications
Camera Front-End Specifications
Image Sensor (inch)
1/3 CMOS
Number of Sensors
3
Mega Pixels
2.2
Gain in dB
-6 to 24
Sensitivity in F at 2000 Lux
F 11
Synchronization External
Yes, and internal
Genlock
Yes
Shutter speed
1/4 to 1/10000
White Balance modes
FAW, AWA, 3200K, 5600K, Manual
Color Matrix adjustment
Yes
Wide Dynamic Range Mode (WDR)
Yes
User selected function buttons
Yes, 12
User Customizes Menu
Yes
Optical Specifications
Lens mount
1/3-inch bayonet mount
Built-in ND Filters
3 Filters: 1/4, 1/16, 1/64
Recording Formats
Media
SDHC/SDXC
Media Class
Class 10
Recording slots
2
Encoder
MPEG2 / H.264
File Format MOV
Yes
File Format MP4
Yes
File Format AVCHD
Yes
File Format MXF
Yes
Video Codec MPEG2 Long GOP
Yes
Video Codec AVCHD
Yes
Video Codec H264 (SD)
Yes
Recording specials
HD+SD / HD+Web
Simultaneous recording on 2 cards
Yes
Simultaneous recording in 2 modes
Yes
Resolution 1920 x 1080
Yes, 60p/50p/30p/25p/24p/60i/50i
Resolution 1440 x 1080
Yes, 60i/50i
Resolution 1280 x720
Yes, 60p/50p/30p/25p/24p
Resolution 720 x 480
Yes, 60i
Resolution 960 x 540
Yes, 30p/25p/24p
Resolution 480 x 270
Yes, 30p/25p/24p
Recording Data rate 1
19Mbps(SP), 25Mbps(SP), 35Mbps(HQ)
Recording Data rate 2
5,9,17,24,28Mbps (AVCHD)
Recording Data rate 3
35Mbps (UHQ)
Recording Data rate 4
50Mbps (XHQ)
Recording Data rate 5
8 Mbps (SD)
Recording Data rate 6
5, 3, 0.8 (WEB)
SD Recording
Yes
Over / Under Crank
Yes
Interval Recording
Yes
Pre Rec (retro) recording
Yes, 10 sec.
Clip Trimming
Yes
Audio Channels
4
Audio Recording modes
LPCM 2ch/4ch, 48 kHz/16 bit (MPEG-2 Long GOP/H.264), AC3 2ch(AVCHD), μ-law 2ch (Web)
Audio Filters
Yes, Wind Cuts, Limiters, Gains
Audio Equalizer
Yes, Graphical
IP Section of the Product
IP Main Connection
USB A Host
IP Connection supports
Ethernet, WIFI - and LTE USB Adapters
IP Features Live-Streaming
Yes
IP Features Remote
Yes, via Web-Browser no apps needed
IP Features FTP
Yes
IP Features Meta-Data
Yes
IP Features IFB (Audio-Return via IP)
Yes, with optional Audio encoder
Live-Streaming Bitrates
0.3,0.8,1.5, 2.5, 3,5,8,12Mbps
Live-Streaming Protocols
RTMP, MPEG2-TS/UDP, MPEG2-TS/RTP, RTSP/RTP, ZIXI
Live-Streaming Single cast
Yes
Live-Streaming Multicast
Yes
Live-Streaming (encoding) for Poolfeed signals
Yes
Live-Streaming reconnect
Yes
Live-Streaming and simultaneous REC
Yes
Live-Streaming Pre-sets of destinations
4
FTP Protocol formats
FTP / SFTP / FTPS
FTP upload during REC
Yes
FTP servers presets
4
Meta-Data presets of servers
4
Input / Output Connections
OUT HDSDI
Yes, 3G
OUT HDSDI Format max.
1080/60p,50p 8 Bit 4:2:2 EE
OUT HDMI
Yes
OUT HDMI Format max.
1920x1080 60/50p 8 Bit 4:2:2
OUT AV
Yes
OUT Audio Line
Yes, 2 times RCA
OUT Audio Headphone
Yes, 2 times 3.5mm mini jack
IN Poolfeed HDSDI
Yes, 1.5 Gbit HDSDI
IN Genlock
Yes
IN Audio XLR MIC/LINE
Yes, 2 times +48V MIC/LINE
IN Audio AUX
Yes, 3.5mm Stereo mini jack
External Lens connector
Yes, 12 pin standard
Time code IN/OUT
Yes
Wired remote IN
Yes, 2.5mm mini jack LANC
Wired remote IN
Yes, 6 Pin DIN
USB HOST
Yes
USB Data Exchange (Storage)
Yes
System Connector
Yes, 68 Pin
EVF Connector
Yes, for VF-P EVF´s
EVF and LCD
Operation Panel Type
LCD
Operation Panel Resolution
1.15M
Operation Panel Size diagonal in inches
4.3
Electronic Viewfinder (EVF) Type
LCOS
Electronic Viewfinder (EVF) Resolution
1,22 Mp
Electronic Viewfinder (EVF) Size diagonal in inches
0.45
Special Indications
Histogram and expanded focus
Power and Enviroment Spec´s
Power AC
Yes, over option AC/DC Adapter
Power DC
Yes, 12V Headroom (10.5V-17V) over V Mount or 4 Pin DC XLR
Battery types
IDX V Mount
Power consumption
Approx. 28W (Camera body with typical optional lens and LCD/VF ON, single recording mode, default settings)
Operation Temperature in Celsius degrees
0 to 40
Storage Temperature in Celsius degrees
-20 to 50
Operation Humidity in %
35 to 80
Storage Humidity under %
85
Physical Information
Weight in lbs
8.9 lbs
Measurements additional notes
Without Studio Adapter
Included Accessories
Instructions
Yes
Software
Yes, Clip Manager
Additional
Yes, Microphone, viewfinder, anti-reflective film
General Editing Note
NOTE:
Simulated pictures.The values for weight and dimensions are approximate .E.&O.E. Design and specifications subject to change without notice.
Product Support
INSTRUCTIONSEnglish2014America,Europe24.93MBViewDownload
INST SHEETEnglish2014America,Europe,Asia and Oceania,Japan0.27MBViewDownload
INST SHEETEnglish2015America,Europe0.72MBViewDownload
SeparateVolumeEnglish2016America,Europe0.96MBViewDownload
INSTRUCTIONSEnglish2017America,Europe14.56MBViewDownload
SeparateVolumeEnglish2017America,Europe1.28MBViewDownload
INSTRUCTIONSFrench2014Europe24.82MBViewDownload
INSTRUCTIONSGerman2014Europe24.85MBViewDownload
INSTRUCTIONSItalian2014Europe24.91MBViewDownload
INSTRUCTIONSRussian2014Europe25.14MBViewDownload
INST SHEETSimplified Chinese2015America,Europe,Asia and Oceania,Japan1.26MBViewDownload
INSTRUCTIONSSimplified Chinese2014Asia and Oceania25.49MBViewDownload
INSTRUCTIONSSpanish2014Europe24.83MBViewDownload

Accessories

  • ACM-17

    Lens adapter to adapt a 2/3" B4 mount lens to 1/3" HD cameras like GY-HM850/890

  • BPL-210

    The BPL-210 uses Load Balancing and SpeedFusion bandwidth bonding to deliver superfast video streaming and data using an SD-WAN enabled network.

  • BPL-380

    The BPL-380 is a multi-WAN router (1U rackmount) that handles up to 20 cellular VPN uplinks. Using SpeedFusion™ bandwidth bonding technology, it aggregates multiple cellular and Wi-Fi links into a virtual LAN connection.

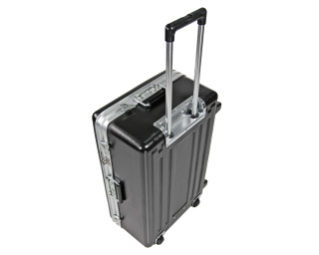

  • CB800
