Broadcast

Broadcast Studios

The GY-HC500 Series 4K 1-inch CMOS camcorder has 20x Zoom, loss-less 40x in HD, output capability for both IP streaming and HDMI, as well as on-board graphics capability such as watermarking for security. These cameras are ideal for live productions, sporting events, ENG, and broadcasts. With NDI HX capability, the GY-HC500N Series easily connects to our KM-IP8 Series IP switcher for simple and efficient integration.

■ Purpose : Broadcast and Studios

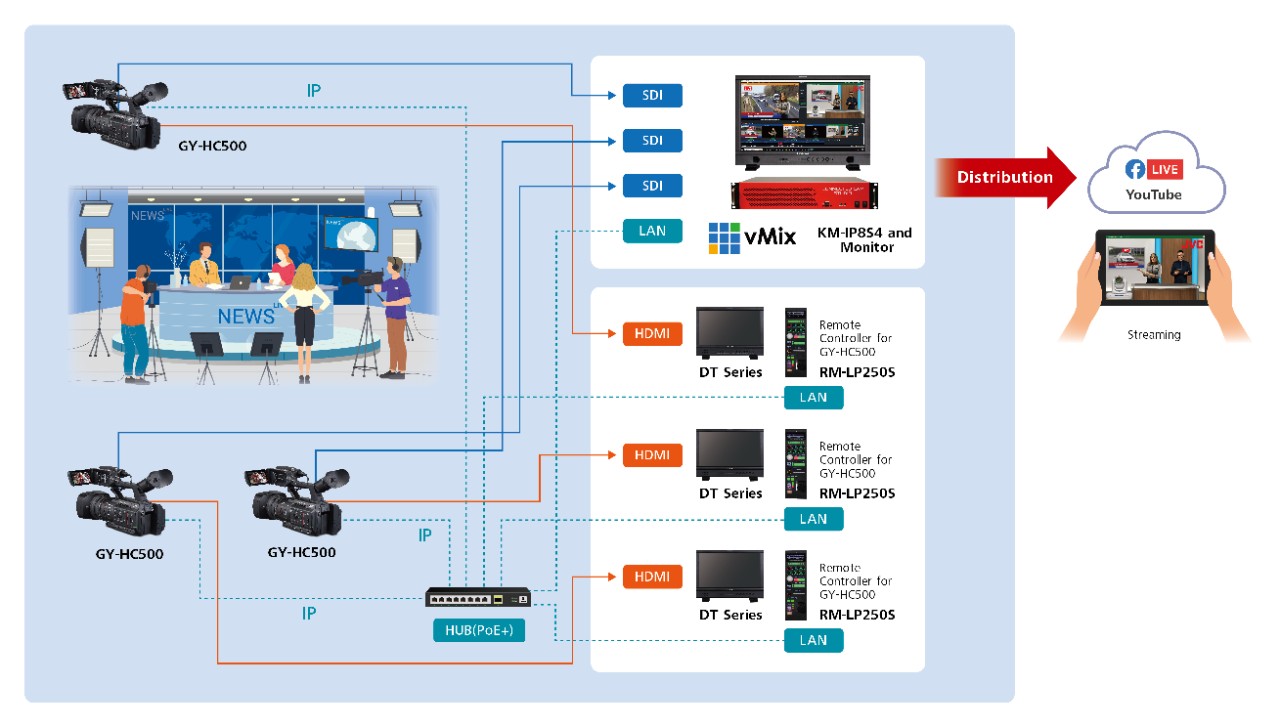

■ Equipment : 3 x GY-HC500 Series for shooting, 3 xRM-LP250S for GY-HC500 Series control, 3 x DT Series monitor , KM-IP8S4 x 1 for Switcher

■ Distribution : The assistant can operate the switcher and stream video to YouTube, etc.



■ System List

ModelDescriptionQuantity
GY-HC500 Series4K 1-Inch Broadcast Camcorder3
RM-LP250SRemote Controller for GY-HC500 Series3
DT-SeriesStudio/Field LCD Monitor3
KM-IP8S48-NDI and 4-SDI NPUT vMix STUDIO SWITCHER1
Monitor for KM-IP81
NetworkHUB(PoE+)1
LAN Cable (Category 5e)

■ Casebook

See more

■ System Products

  • GY-HC500MC

    The GY-HC500MC is the GY-HC500 4K CONNECTED CAM™ camcorder with the KA-MC100G M.2 SSD Media Adapter included. By placing an M.2 SSD into the KA-MC100G and inserting it in the expansion slot of the GY-HC500.

  • GY-HC500U

    1"CMOS 4K / 20x Zoom / ProRes 422 10-bit / 4K50p60p / SRT / HDR via HLG J-log1 / High-Speed Recording

  • GY-HC550U

    Built-in wireless LAN / SRT or Zixi streaming / 1"CMOS 4K / 20x Zoom / ProRes 422 10-bit / 4K50p60p / HDR via HLG J-log1 / High-Speed Recording

  • KM-IP8S4

    Optimal for switching live programming in SD up to full HD 1080 60P with vMix 4K licensed software. KM-IP8S4 provides a minimum of 8 NDI HX inputs and 4-SDI inputs (up to 1080p60). This product becomes a significant part of JVC's live IP production workflow solution.

  • RM-LP250S

    The RM-LP250S is a single-camera IP based remote control panel for JVC's CONNECTED CAM (GY-HC500 & GY-HC900) models.

  • RM-LP350G

    Desktop vMix control surface adds tactile controls and a traditional production switching interface to a vMix GO or any system running vMix software.

  • RM-LP450G

    The RM-LP450G can increase the speed of your live playback workflow. Slow-motion controller for the JVC vMix studio switchers. 　

  • DT-N24F

    The ProHD DT-N24F is an affordable Studio Monitor and offers wide connectivity options and features. DT-N24F supports cine 2K 2048 x 1080P signal sources and 3D-LUT Tables

  • DT-N24H

    The ProHD DT-N24H is an affordable Studio Monitor and offers wide connectivity options and features. DT-N24H supports cine 2K 2048 x 1080P signal sources and 3D-LUT Tables
