JVC to launch the MS-S200, a 21.3-inch medical imaging monitor

High luminance & High contrast 2MP monochrome monitor for diagnostic imaging

Jan 26, 2021

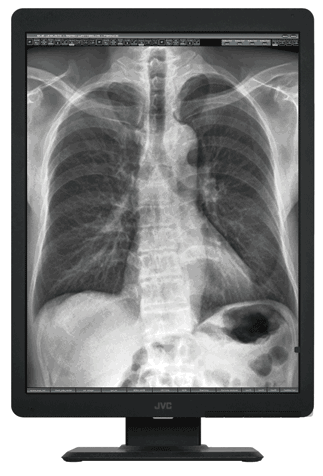

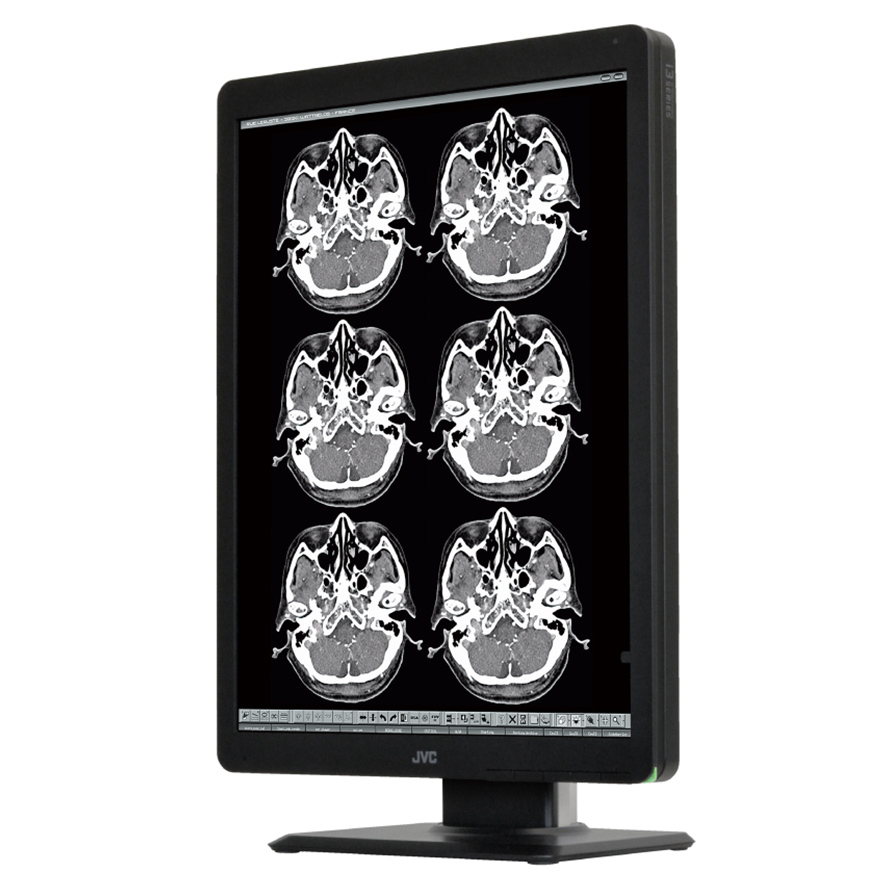

JVC will release the MS-S200 (21.3-inch 2-megapixel monochrome LCD monitor) as the "i3 series" of medical image display monitor (hereinafter referred to as "medical monitor") in March 2021.

Item name Model name Recommended retail price (tax excluded) Release date
21.3-inch 2-megapixel monochrome LCD monitor MS-S200 Open price March 2021

Project’s intention

The rise of digital imaging technology has quickly changed the way in which patient data is used and distributed within hospitals. The adequate and repeatable performance of the image display system is a key element of information technology platforms in a modern radiology department. Especially COVID-19 outbreak calls for more accurate imaging diagnosis to discover lung lesions at early stage.

Thus JVC will release the 21.3-inch 2-megapixel monochrome monitor "MS-S200" that can precisely dispaly various medical image such as DR, CT and MRI etc. It is also a cost-effective solution owing to our original technology ISD which can render 6 mega sub-pixels images, and contributes to improve the work efficiency.

Key features

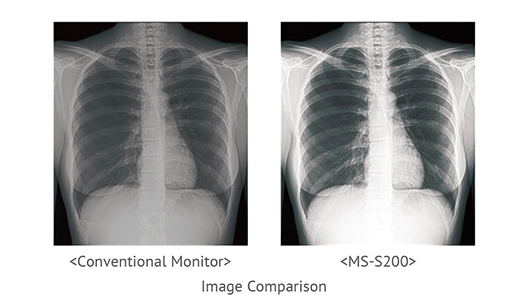

Excellent Diagnostic Visibility

MS-S200 comes with 1800:1 contrast ratio to make it the best solution for diagnostic imaging of DR, CT and MRI etc. The brighter screen dramatically increases the number of perceptual grayscale steps to improve visibility of structures. Diagnostic reading will be much more efficient. One of its unique technologies the built-in sensor ensures that the monitor constantly performs at its best.

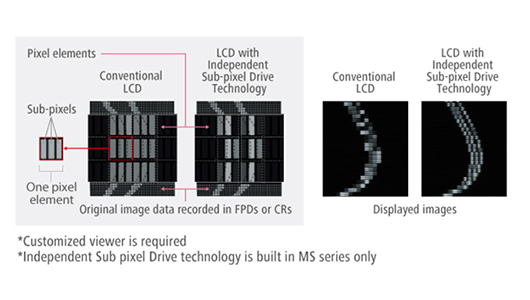

Independent Sub-pixel Drive Technology

This unique technology enables MS-S200 to render 6 mega sub-pixel images, exceeding the current standards for primary diagnosis. This will be a cost-effective way of enhancing the ability of 2MP display. (Patent No.8, 259, 034B2)

Auto Text Mode

Brightness is automatically adjusted on patient lists and reporting applications to reduce eye strain.

High Contrast Improved Diagnostic Visibility

A contrast ratio of 1800:1 delivers crisper images and gives radiologists confidence in breast image interpretation to improve work efficiency.

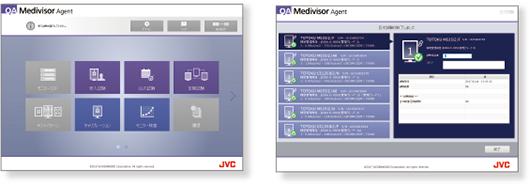

Integrated QA Solution

QA Medivisor Agent providing calibration and QA standard testing through a straightforward user interface is effective to manage daily operation.



* Optional calibration kit CAL-016 is required for standard QA testing.

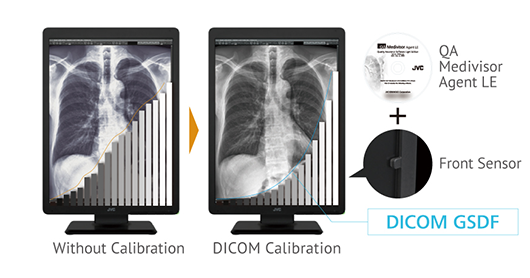

Self-calibration

With the integrated front sensor, the MS-S200 self-calibrates to the DICOM Part 14 Standard on a regular schedule.

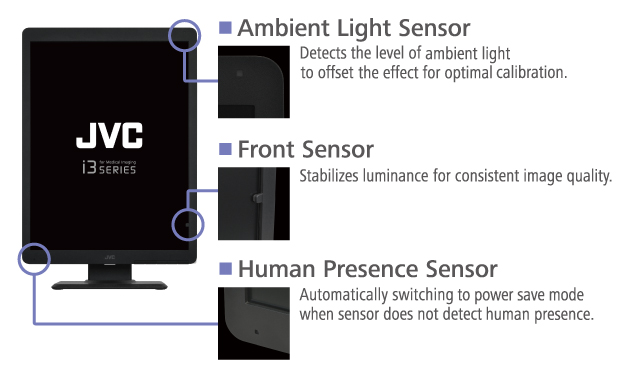

Built-in Sensor

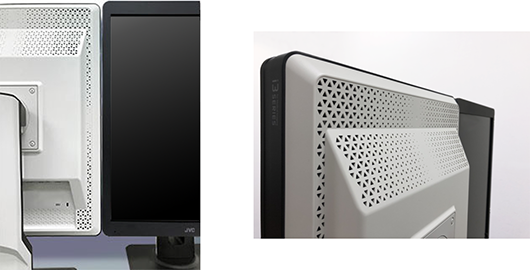

Premium Design

A simple and slim design for a modern look.

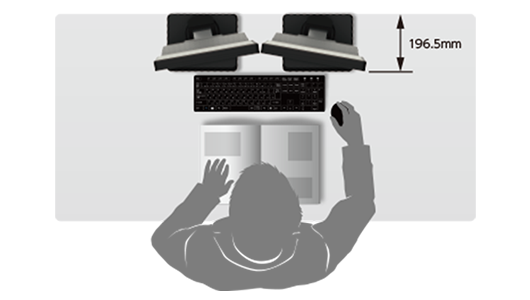

Space Saving

The new design of MS-S200 reduces 25% of the stand footprint compared to the conventional models.

Low Blue light Panel

MS-S200 comes with a low blue light panel, which reduce strain on the eyes while reading.

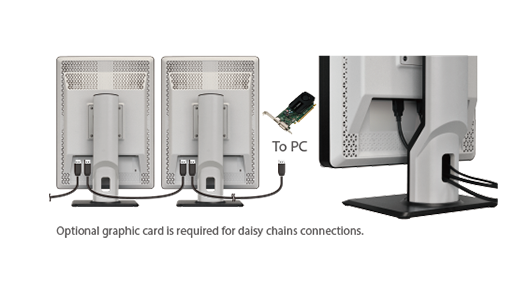

Wire Management / DisplayPort Daisy Chains

With the DisplayPort 1.2, the use of daisy chains allows for easier wiring connections.

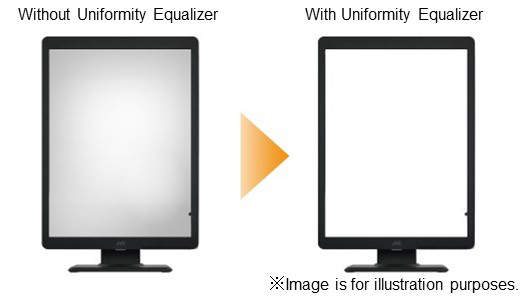

Uniformity Equalizer

Luminance uniformity correction system produces stable images across the screen.

Specifications

With the DisplayPort 1.2, the use of daisy chains allows for easier wiring connections.

Model Name MS-S200BF : Protective Filter
MS-S200BN : No Protective Filter
LCD Panel Technology 21.3-inch, monochrome, TFT, IPS technology
Display Area 324 mm x 432 mm
Pixel Pitch 0.270 mm × 0.270 mm
Contrast Ratio 1800 : 1 (typ.)
Maximum Luminance 1900 cd/m² (typ.)
500 cd/m² (calibrated)
Viewing Angle 178° vertical and horizontal
Visual Performance Native Resolution 1200 x 1600 (Independent Sub-pixel Drive technology ON : 1200 x 4800)
Display Colors 256 shades of grayscale are simultaneously displayed from a palette of 16,369 grayscale steps
*1024 or 10-bit shades of grayscale with DisplayPort and 10-bit viewer
*1276 shades of grayscale by using Independent Sub-pixel Drive technology
Interface Input Signal DVI-D (DVI 1.0 compliant)
DisplayPort (DisplayPort 1.2a compliant)
Output Signal DisplayPort (DisplayPort 1.2a compliant)
Plug and Play DDC2B compliant
Input Power Supply Input Power Supply 100V - 240 V 50/60 Hz
Power Consumption 35 W (typ.)
Features Calibration Control Luminance, Gamma, Capable of storing 3 sets of LUT (Optional Calibration Kit is required)
OSD Information Display Model name, Serial No., Total operating time, Calibration settings (Operating time since last calibration, Luminance, Gamma), Current luminance, Ambient light, DICOM conformance
USB Hub USB Rev.2 compliant, Self-powered
USB upstream connector (x1), USB downstream connector (x2)
Other Features Uniformity Equalizer, Hardware pivot, LED indicator, Advanced power management, Human Presence Sensor, Independent Sub-pixel Drive technology, Auto Text Mode, Luminance stabilization, Multiple LUT, Self DICOM check, Self-calibration
Approvals ANSI/AAMI ES60601-1 (2005) + A1 (2012), CAN/CSA-C22.2 No. 60601-1 (2014), CE (EN60601-1, EN60601-1-2), RCM, FCC Part15 subpart B Class B, ICES-003-B, VCCI-B, FDA510(k), J-Moss, RoHS, EAC
Physical Characteristics Dimensions(W x H x D) Landscape : 493.0 mm x 451.3 / 546.3 mm x 196.5 mm
Portrait : 361.5 mm x 517.0 / 612.0 mm x 196.5 mm
Weight approx. 9 kg
Tilt Stand Tilt, Swivel, Portrait / Landscape
Mount VESA standard (100 mm x 100 mm)
Accessories Power cord, DVI cable, DisplayPort cable, USB cable, Operation manual, Installation manual, Software (QA Medivisor Agent LE)
