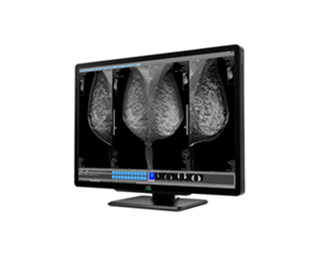

3MP 21.3" Color Monitor

CL-S300

3MP 21.3" Color Monitor / Multi image diagnosis


  • Thorax (CR)
  • CT/MR
  • PET CT
  • Dental

Clearly Defined Diagnostic Images

The new i3 color series render more precise color and monochrome modality images. One of its unique technologies the built-in self-calibrating sensor ensures that the monitor constantly performs at its best.

Dynamic Gamma

Color Images are automatically recognized to provide optimized contrast, brightness and gamma. No user intervention is required.

Auto Text Mode

Brightness is automatically adjusted on patient lists and reporting applications to reduce eye strain.

Integrated QA Solution

QA Medivisor Agent providing calibration and QA standard testing through a straightforward user interface is effective to manage daily operation.

Self-calibration

With the integrated color front sensor, the CL-S200/CL-S300 self-calibrates to the DICOM Part 14 Standard on a regular schedule.

Razor-sharp Color Precision

Utilizing its unique X, Y, Z, color level tracking and color management technologies, any of the i3 model perfectly color-matches one another.

Premium Design

A simple and slim design for a modern look

LED Indicator / Front Buttons

The soft LED light indicator and front buttons are streamlined for intuitive operation.

Built-in Sensor

Space Saving

The new design reduces 25% of the stand footprint compared to the conventional models.

Two-tone Color

The back side features a stylish gray-white tone color.

Wire Management / DisplayPort Daisy Chains

With the DisplayPort 1.2, the use of daisy chains allows for easier wiring connections.

  • DICOM calibration
  • Remote calibration and management
  • 3 Megapixel - 1000 cd/m² - 1200 :1 contrast
Technical Specifications
Technical Specifications
Display Specs
Display size
21.3“ (54.1 cm)
Display Area
324.86 mm x 433.15 mm
LED Backlight
Yes
Resolution (native)
1536 x 2048 (3 Megapixel)
Pixel pitch
0.2115 mm x 0.2115 mm
Color reproduction via DVI
32 Bit
Color reproduction via DisplayPort
40 Bit
Number of greyscales via DVI
256
Number of greyscales via DisplayPort
1024
LUT (Look Up Table)
16 Bit per RGB Channel
Maximum brightness
1000 cd/m²
Factory Calibration
410 cd/m² / 500 cd/m²
Contrast ratio
1500 :1
Viewing angle
h: 178° / v: 178°
Protection filter
Yes
Integrated Sensors
Ambient light sensor
Yes
Front Sensor
Yes
Color Front Sensor
Yes
Human Sensor
Yes
Display Features
Calibration Feature
Yes
DICOM Preset
Yes
Brightness Uniformity Correction
Yes
Color Uniformity Correction
Yes
Remote Calibration
Yes
Function Keys
Yes
Dynamic Gamma
Yes
Auto Text Mode
Yes
Built-in Test Patterns
Yes
Display Input Output
DVI Input
Yes, (Dual Link)
DisplayPort Input
Yes, Ver. 1.1
USB Interface
USB Interface
Yes, USB 2.0
USB Hub
Yes
USB Connections
1x Up / 2x Down
Display Applications
Thorax (CR)
Yes
CT/MR
Yes
PET CT
Yes
Dental
Yes
General Display
Power
100V ~ 240V (±10%) 50/60Hz
Integrated power supply
Yes
Power consumption
95W
Height adjustment
Yes
Portrait function
Yes
VESA mount
Yes, (100mm)
Dimensions Portrait
Net: W: 361.5 x H: 517 / 612 x D: 196.5 mm
Weight
approx. 10kg
