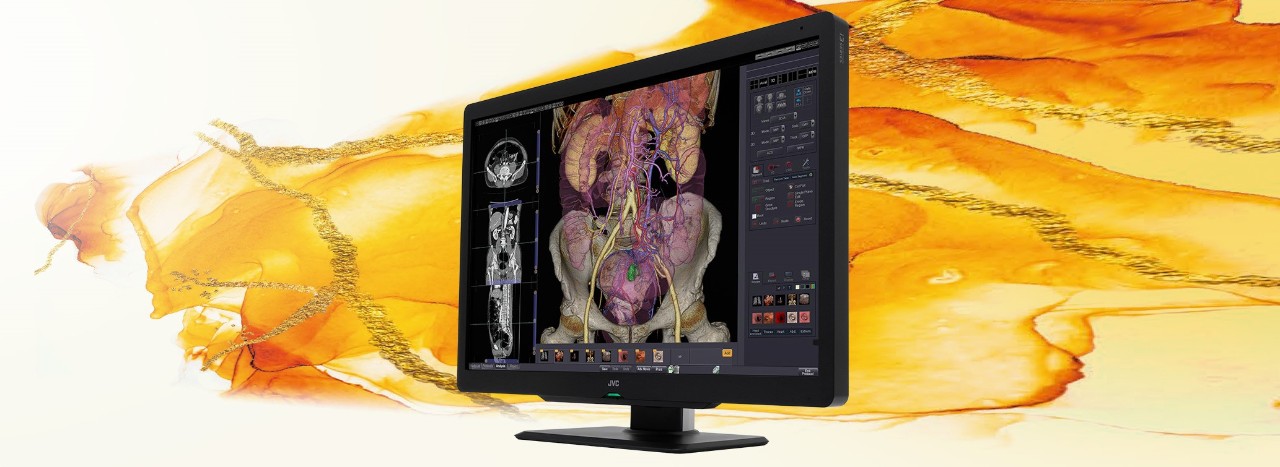

JVC to launch the CL-S600, a 30-inch medical imaging monitor

6-megapixel wide color monitor for displaying various diagnostic images on one workstation

Oct 7, 2021

JVC will release the CL-S1200 (30.9-inch 12-megapixel color LCD monitor) as the "i3 series" of medical image display monitor (hereinafter referred to as "medical monitor") in January 2021.


Item name Model name Recommended retail price (tax excluded) Release date
30-inch 6-megapixel color LCD monitor CL-S600 Open price October 2021

Project’s intention

In recent years, the evolution of medical equipment has made it possible to handle a large amount of image data. More and more doctors are using multiple medical monitors side by side, putting a burden on imaging diagnosis. Furthermore, with the development of AI diagnostic imaging, it is expected to operate each window while displaying multiple windows simultaneously, not only for 2D images but also volume rendering 3D images or analysis results.

Therefore, we will release the 30-inch wide color monitor “CL-S600” with a high resolution of 6 megapixels which equals two 3-megapixel monitors. It enables efficient image reading for CT, MRI, ultrasound, and pathology. Furthermore, high brightness of 1300 cd/㎡ and high contrast of 2000:1 improve the visibility significantly, contributing to increasing the work efficiency, reducing the pressure on doctors who need to read numerous diagnostic images, and saving working space.

Key features

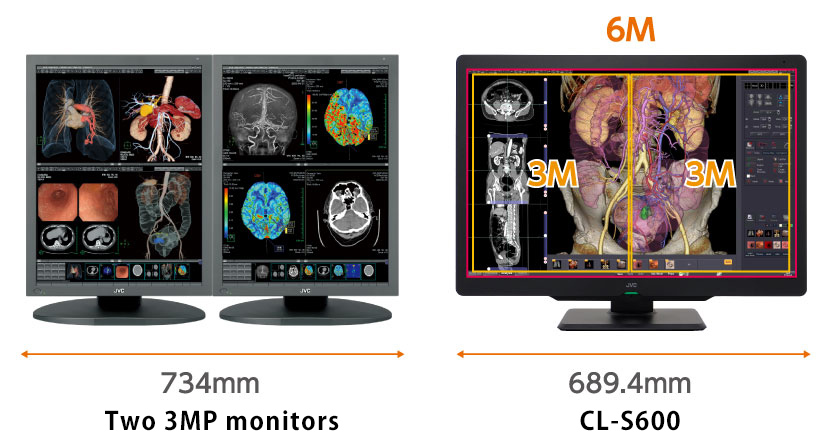

1. 30-inch 6-megapixel monitor for multi-modality environment

The CL-S600 is equipped with a wide screen area of 30 inches and a high resolution of 6 megapixels, realizing to display two windows side-by-side and free layouts for various medical images of CT, MRI, ultrasound, and pathology. The seamless screen reduces the fatigue of eye movement and provides a comfortable diagnostic imaging environment.

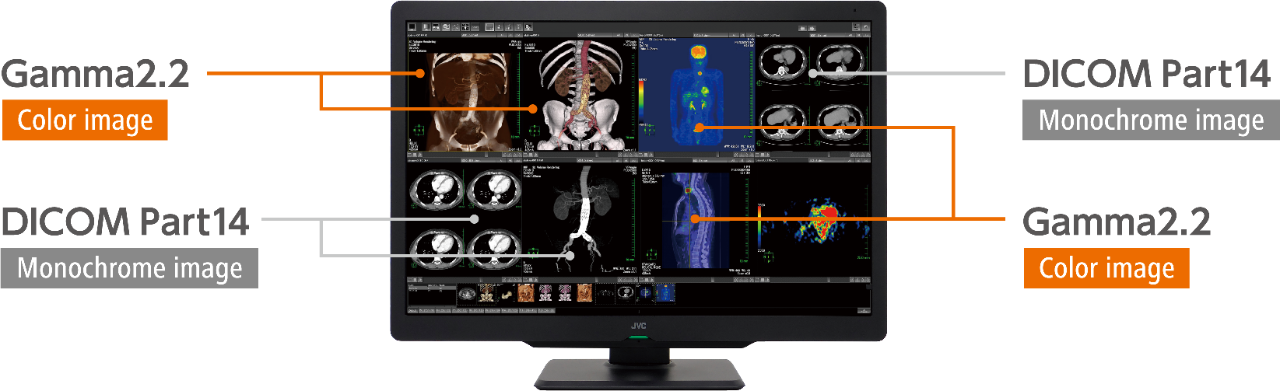

2. Optimal gradation for monochrome / color images

The dynamic gamma function (patented No. 6277984) can automatically identify pixels of monochrome and color images to display each of them in the optimum gradation. Various color images such as ultrasound, endoscope, pathology, and nuclear medicine are displayed optimally with simple operations in real time.

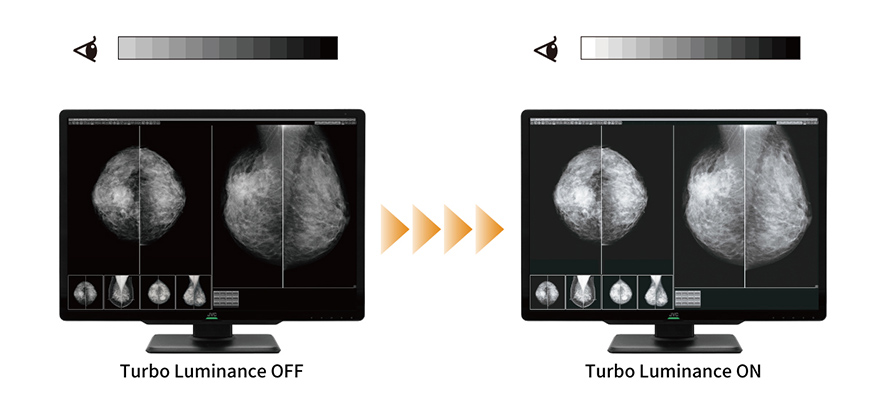

3. Increases brightness and contrast to the maximum value to improve visibility

The Turbo Luminance function can boost screen brightness and contrast to maximum for 30 seconds to magnify identifiable grayscale gradations, contributing to finding out low contrast lesions. It also works for displaying monochrome images complied with DICOM GSDF, maintaining image quality under the high brightness condition.

4. Visual Point Mode -the detail you want to focus on

Using Visual Point Mode, you can focus on the detail where you want to see. (4 options of area shape)
It can also be used in combination with the Turbo Luminance function.

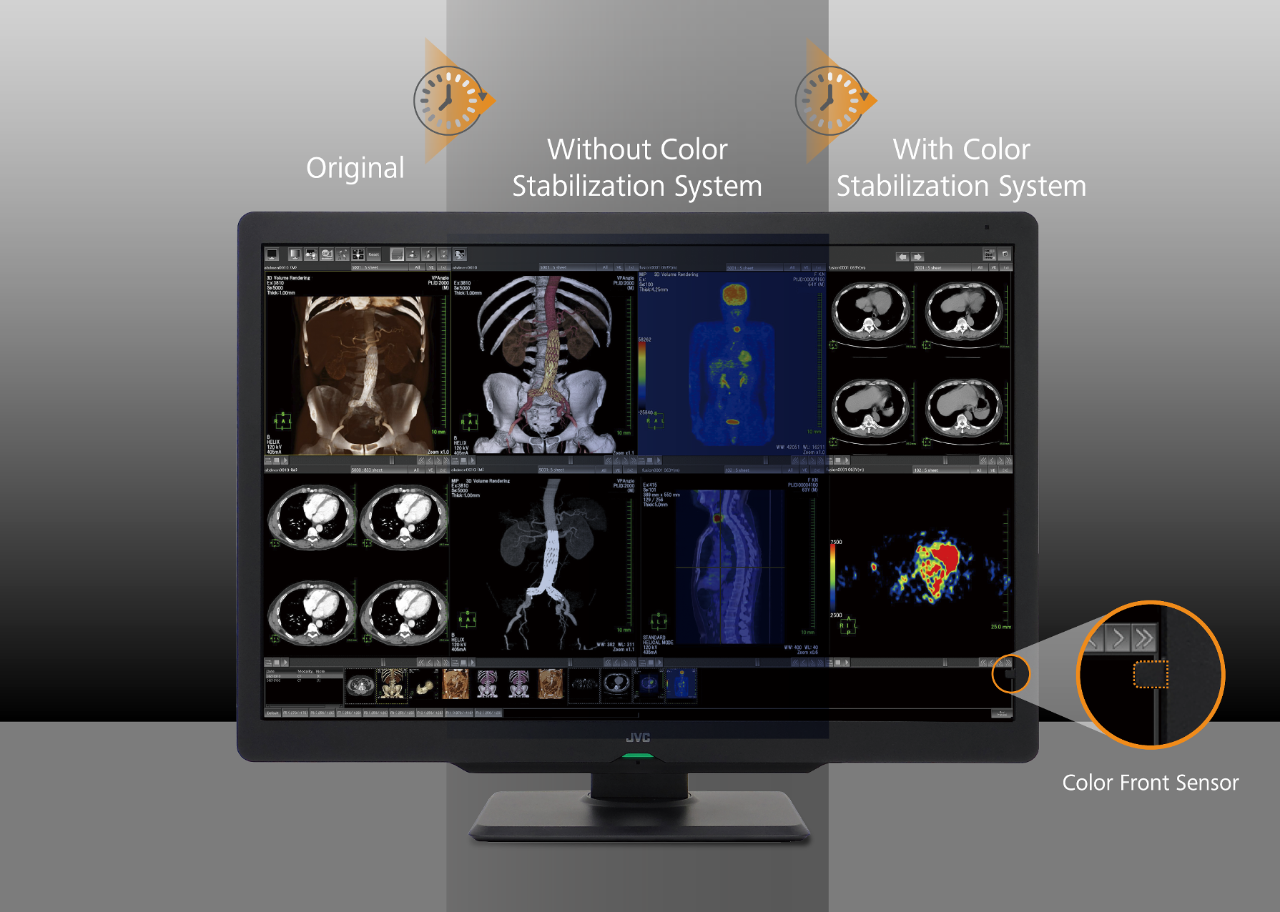

5. Stable image representation in luminance and color temperature even long-term use

The stabilization system for luminance and color temperature can automatically adjust luminance and color temperature in real time. The built-in Color Front Sensor on the screen realizes constant measurement of color temperature and adjust the color temperature changes due to long-term use that the movable front sensor cannot.

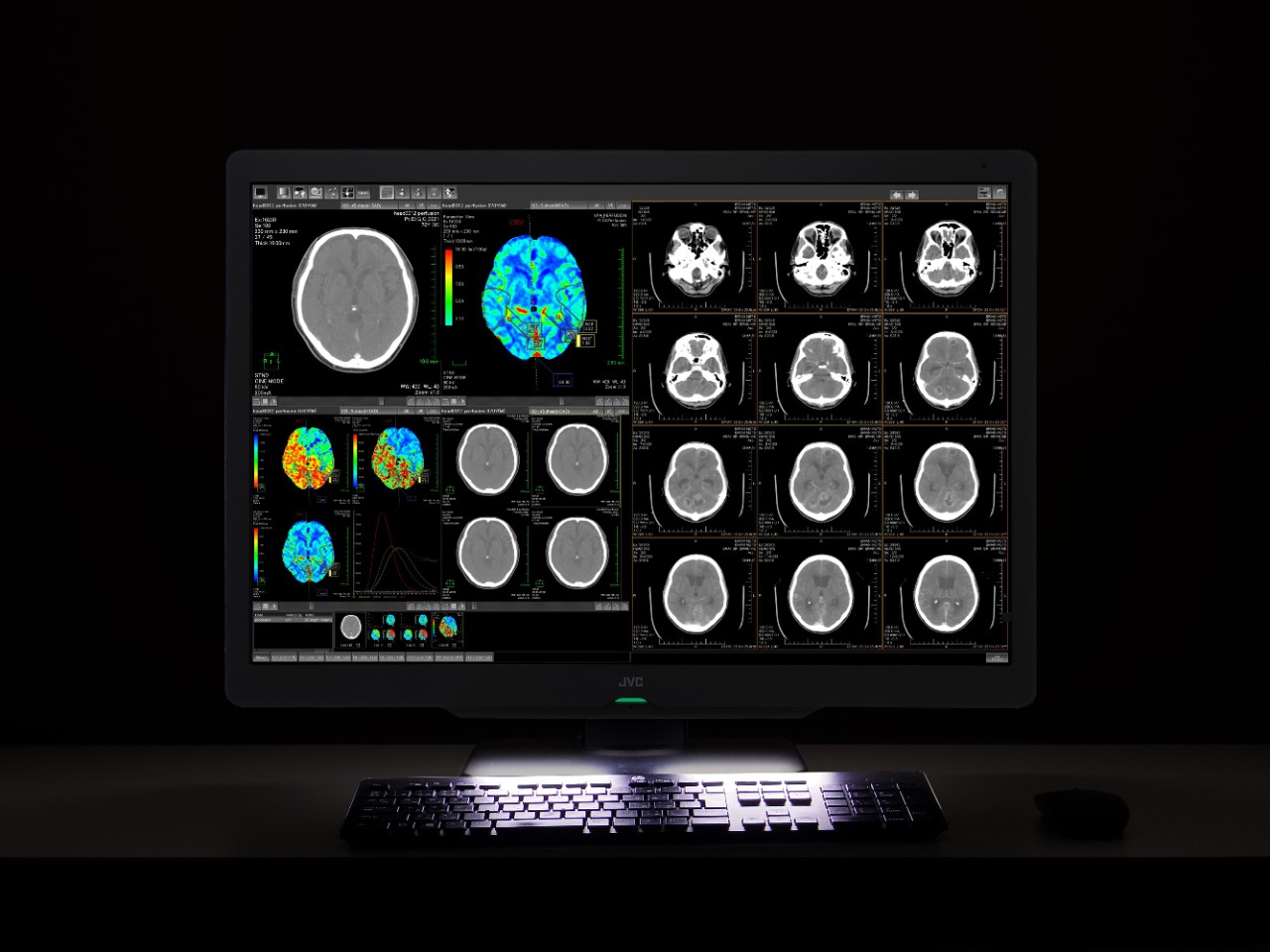

6. Light up for the back and bottom of the monitor to support image reading in the dark room

The built-in reading light on the bottom illuminates the keyboard and mouse. The brightness of lights can be adjustable to support working in the dark room.


Model Name CL-S600
Model Type CL-S600BN(AG), CL-S600BA(AR)
LCD Panel Technology
Display Area 645.5 mm × 409.34 mm
Pixel pitch 0.197 mm × 0.197 mm
Maximum Luminance 1300 cd/m² (typ.)
600 cd/m² (calibrated)
Contrast Ratio 2000 : 1 (typ.)
Viewing Angle 178°vertical and horizontal
Visual Performance Native Resolution
Display Colors 16.77 million colors
1.07 billion colors with DisplayPort and 10-bit viewer
Interface Input Signal
Output Signal DisplayPort (DisplayPort 1.4) x 1
Plug and Play DDC2B compliant
Input Power Supply Input Power Supply
Power Consumption 80 W (typ.)
Features Calibration Control
USB Hub USB Rev.2 compliant, Self-powered
USB upstream connector (x1), USB downstream connector (x3)
Approvals ANSI/AAMI ES60601-1 (2005) + A1 (2012),CAN/CSA-C22.2 No. 60601-1 (2014),CE (EN60601-1, EN60601-1-2), FCC Part15 subpart B Class B,ICES-003-B, VCCI-B, FDA510(k), J-Moss, RoHS, RCM
Physical Characteristics Dimensions
(W x H x D)
Weight approx. 15.1 kg
Tilt Stand Tilt, Swivel
Mount VESA standard (100 mm x 100 mm)
Accessories Power cord, DisplayPort cable, USB cable, Operation manual, Installation manual, Software (QA Medivisor Agent LE)
