SMARTPHONE INTEGRATION
KW-M80AW
×
Monitor with Receiver
KW-M80AW
Digital Media Receiver featuring 9" Capacitive Touch Monitor / Apple CarPlay (Wireless, Wired) / Android Auto™ (Wireless, Wired) / Wireless Mirroring / Bluetooth® / 13-Band EQ / Short Chassis
Apple CarPlay – Connect Wirelessly or via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability//#applecarplay-applecarplay
Android Auto™ – Connect Wirelessly or via USB
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.
*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.
Wireless Mirroring
By installing the “MirrorApp+” app, your mobile phone is seamlessly displayed on the receiver's screen without cable. You can enjoy a variety of apps such as Waze, YouTube™, and Instagram. Touch control is possible from both screen and mobile phone.
*Selected mobile phones only
MirrorAPP+
SOUND OPTIMIZATION

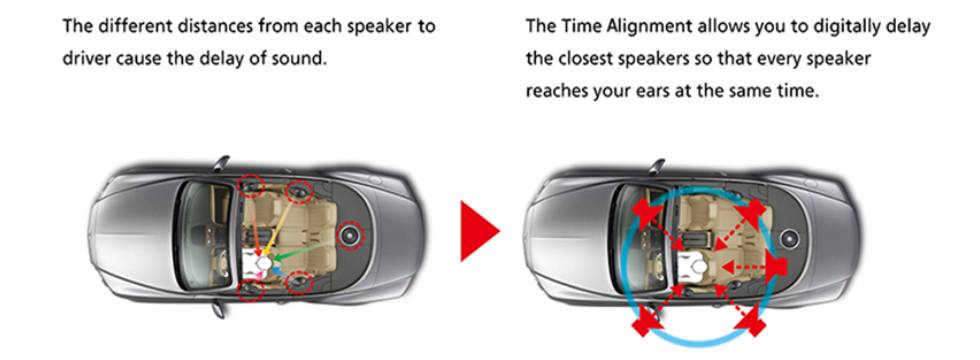

Time Alignment
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

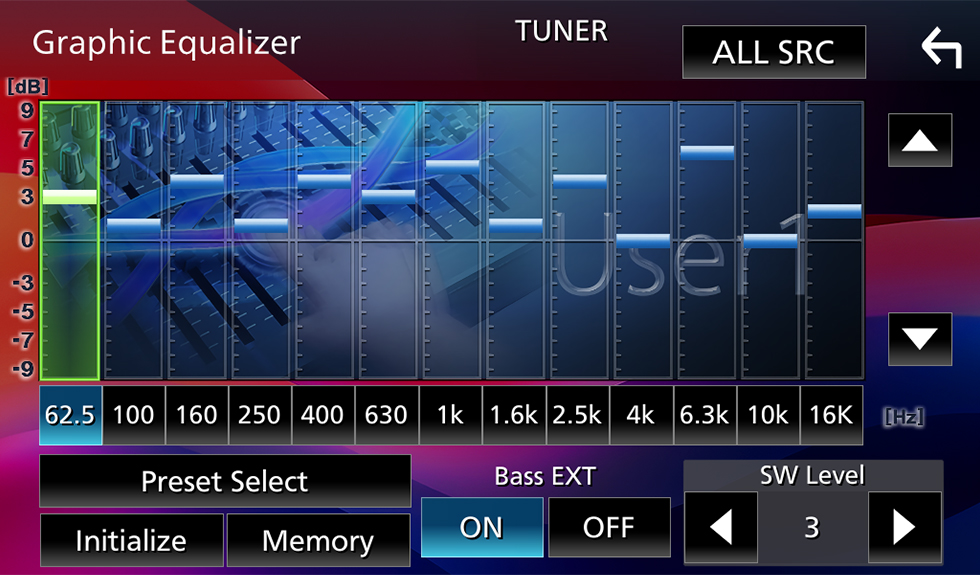

13-Band Equalizer
Use the 13-Band Equalizer to manually adjust the sound to your taste.
Bluetooth® WIRELESS TECHNOLOGY
Bluetooth Voice Recognition
Improved Sound Quality with HFP 1.7
Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.
Bluetooth AVRCP1.6 for Versatile Song Selection
In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.
GENERAL
9" WSVGA LCD Display
The WSVGA display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.
Capacitive Touchscreen
The Capacitive touch screen provides high clarity and uses a superior touch control, requiring lighter contact with greater accuracy.

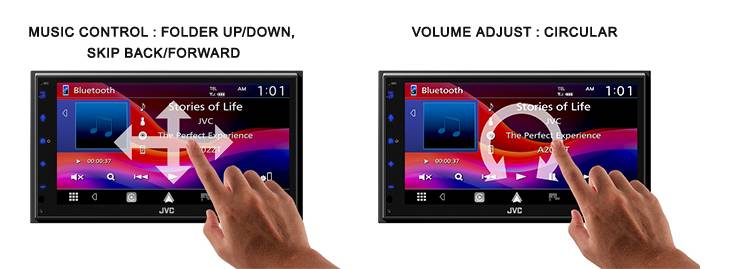

Gesture Touch Control
Just touch and move your finger over the screen for various operations corresponding to your finger-movements (for some sources, the Gesture Touch Control is not available). Intuitive control provides safer operation for in-car entertainment.
High Current 2.1A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 2.1A.
*Compatibility depends on the smartphone.
Short Chassis
Despite its 9" display, our unit stands out with its remarkably compact rear chassis, ensuring hassle-free installation and optimal cable management.
Steering Wheel Remote Control Ready
Factory steering wheel control functions can be retained with a third-party adapter (sold separately).
Remote Control (Optional)
Remote control (RM-RK259) is optionally available.
Learning Steering Remote Function
No need for a third party adapter for most Japanese/Korean cars. Click here for details.
Technical Specifications
Manuals
Technical Specifications
Monitor
- Screen Size
- 9 inches (diagonal) wide
- Touch Panel Type
- WSVGA Capacitive
- Touch Control
- Yes
- Key Illumination Colour
- Blue
- Dimmer
- Yes
- Multilanguage Display
- Yes
Radio Tuner
- Radio Data System (RDS)
- Yes
- FM Frequency Range
- 87.5 - 108.0MHz
- AM Frequency Range
- 531-1,611kHz
- Preset Stations
- 36 (FM:24ch, AM:12ch)
- Auto Memory Entry
- Yes
Media Playback
- MP3 Compatible with Tag
- USB
- WMA Compatible with Tag
- USB
- WAV Compatible with Tag
- USB
- AAC Compatible with Tag
- USB
- FLAC Compatible with Tag
- USB
- MPEG-1 / MPEG-2 Compatible
- USB
- MPEG-4 Compatible
- USB
- WMV Compatible
- USB
- H.264 Compatible
- USB
- MKV Compatible
- USB
USB
- USB Port
- x 1
- USB Standard
- High Speed
- Location
- Rear
- 2.1A Max Power Supply Current
- Yes
Bluetooth®
- Built-In Bluetooth
- Yes
*Available functions depend on mobile phone.
- Voice Dialing
- Yes
* Voice recognition compatible mobile phone required
- Hands Free Call (HFP)
- Yes (HFP1.7)
- Advanced Audio Distribution Profile (A2DP)
- Yes
- Audio/Video Remote Control Profile (AVRCP)
- Yes
- Phone Book Access Profile (PBAP)
- Yes
- Supported Audio Formats
- AAC / SBC
- Built-in Hands-Free MIC
- Yes
Wi-Fi Control
- Built-in Wi-Fi
- Yes
Android Control
- Android Auto
- Yes (via Wi-Fi or USB) *Compatible Android phone and compatible active data plan required.
- Wireless screen mirroring for Android
- Yes (via Wi-Fi)
*Need mirroring App
iPod/iPhone Control
- Carplay
- Yes (via Wi-Fi or USB)
- Wireless screen mirroring
- Yes (via Wi-Fi)
*Need mirroring App
Audio
- Maximum Power Output (Front & Rear)
- 50W x 4
- Full Bandwidth Power (at less than 1%THD)
- 22W x 4
- 13-Band Graphic EQ
- Yes
- Preset EQ
- Yes (7 Preset + 3 User)
- High-Pass Filter/Low-Pass Filter
- Yes/Yes
- Bass Boost (Hyper Bass System)
- Yes
- Speaker Size Control
- Yes
Inputs and Outputs
- Pre-Out Terminals
- 2 Preouts + Sub WF (Mono)
- Pre-Output Level
- 2.5V / 10k ohms
- Subwoofer Output with Level/Frequency Control
- Yes
- Video Out
- x 1 (V:RCA)
- Rear view camera Input
- Yes
General
- Wireless Remote Control
- Optional (RM-RK259 required)
- Wired Steering Remote Control Ready
- Yes
- Learning Direct OEM Remote
- Yes
- Short Chassis
- Yes
- Installation Size (W x H x D)
- 229 x 130.5 x 100.8 (mm)
- Weight
- 1.33kg
- Unit weight in individual package
- 1.86kg
