Monitor with Receiver

KW-M590BT

Digital Media Receiver featuring 6.8" Capacitive Touch Monitor / Apple CarPlay / Android Auto™ / USB Mirroring / Bluetooth® / 13-Band EQ / Short Chassis


  • Carplay
  • Android Auto
  • >
  • Built-In Bluetooth
  • Rear view camera Input
  • 13-Band Graphic EQ
  • Wired Steering Remote Control Ready

SMARTPHONE
INTEGRATION

JVC multimedia receivers interface your smartphone with your car to enrich your driving experience. Enjoy your favorite apps and view content on a big screen, in comfort and safety.

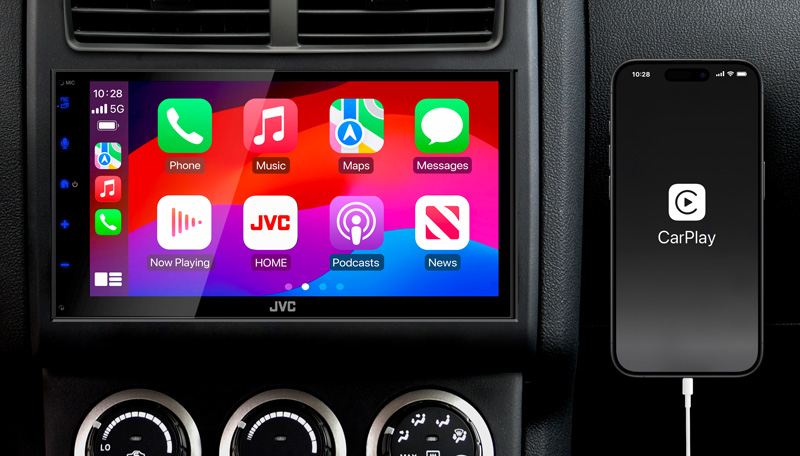

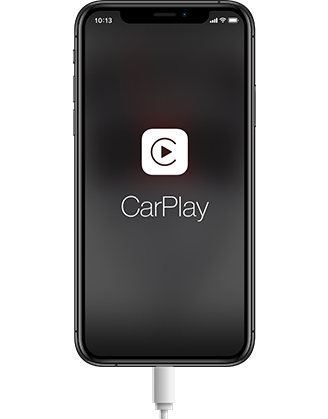

Apple CarPlay – Connect via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability//#applecarplay-applecarplay

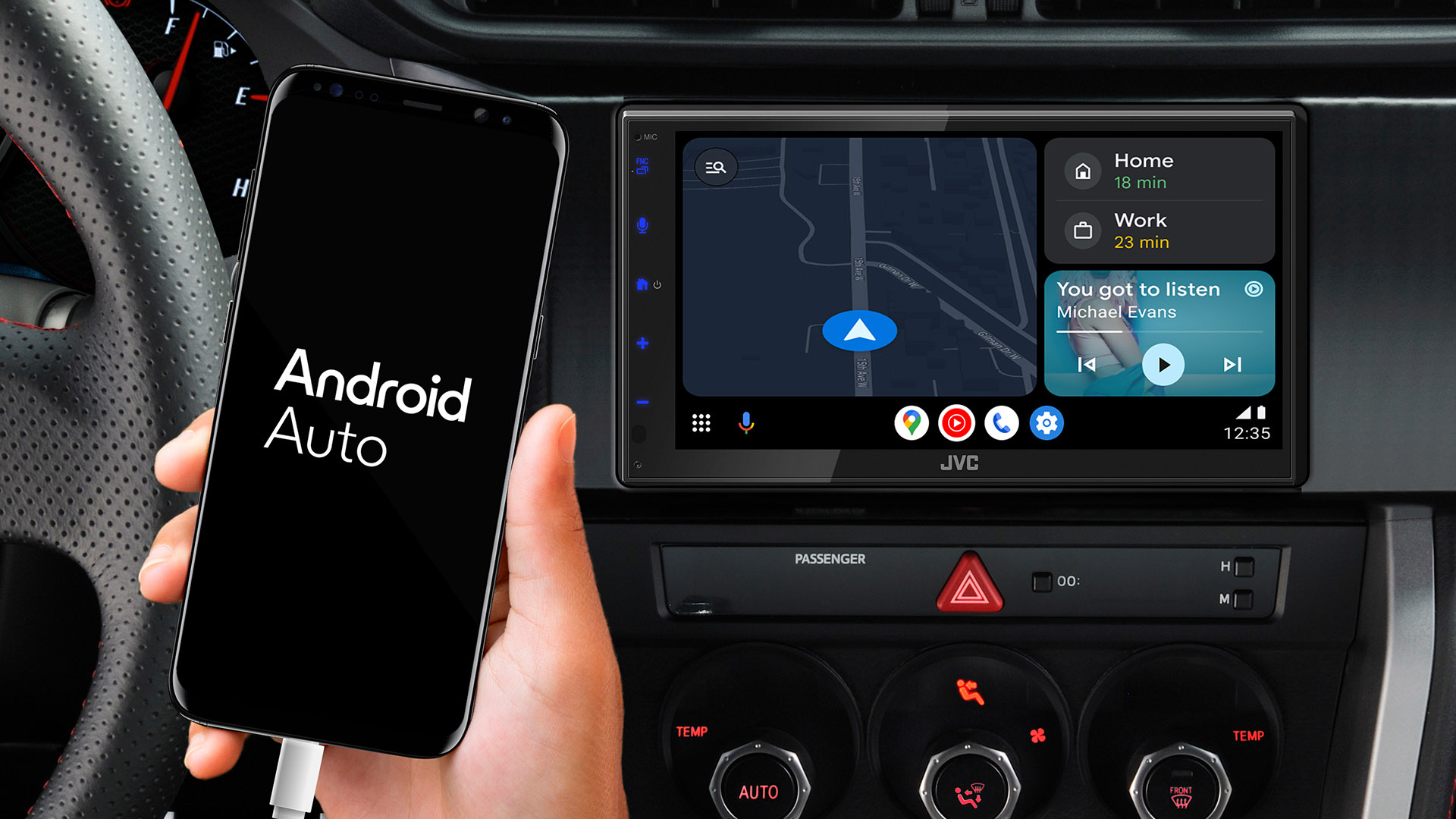

Android Auto™ – Connect via USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.

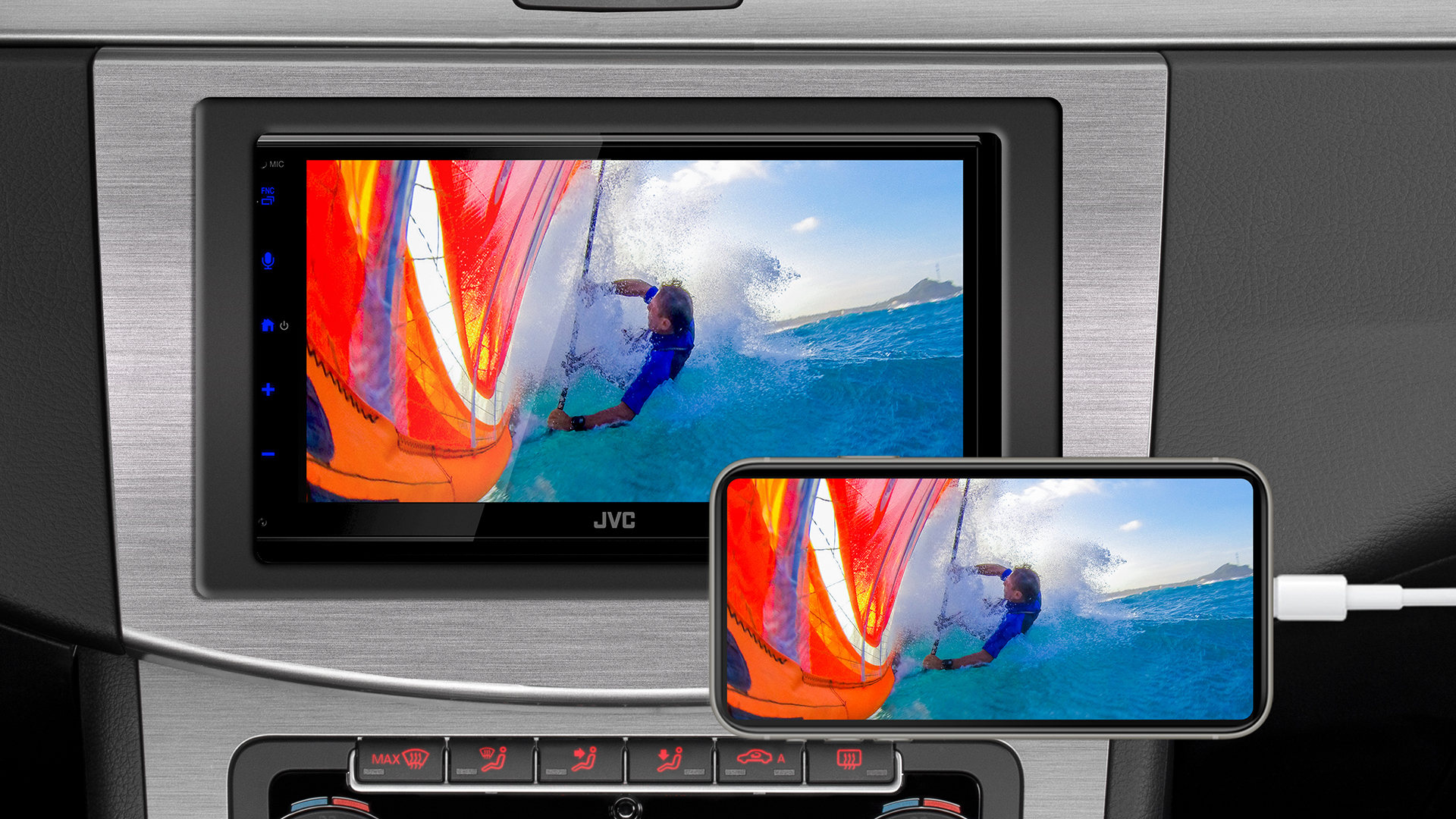

USB Mirroring

By installing the “MirrorApp+” app, your mobile phone is seamlessly displayed on the receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube™, and Instagram. Touch control is possible from both screen and mobile phone.

*Selected mobile phones only

  • MirrorAPP+
  • GET IT ON Google Play
  • Download on the App Store
SOUND OPTIMIZATION

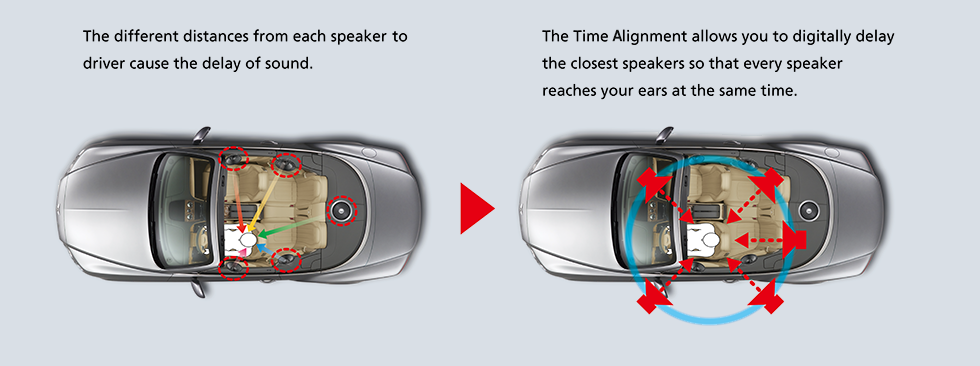

Time Alignment



Time Alignment

By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

Time Alignment GUI
Time Alignment

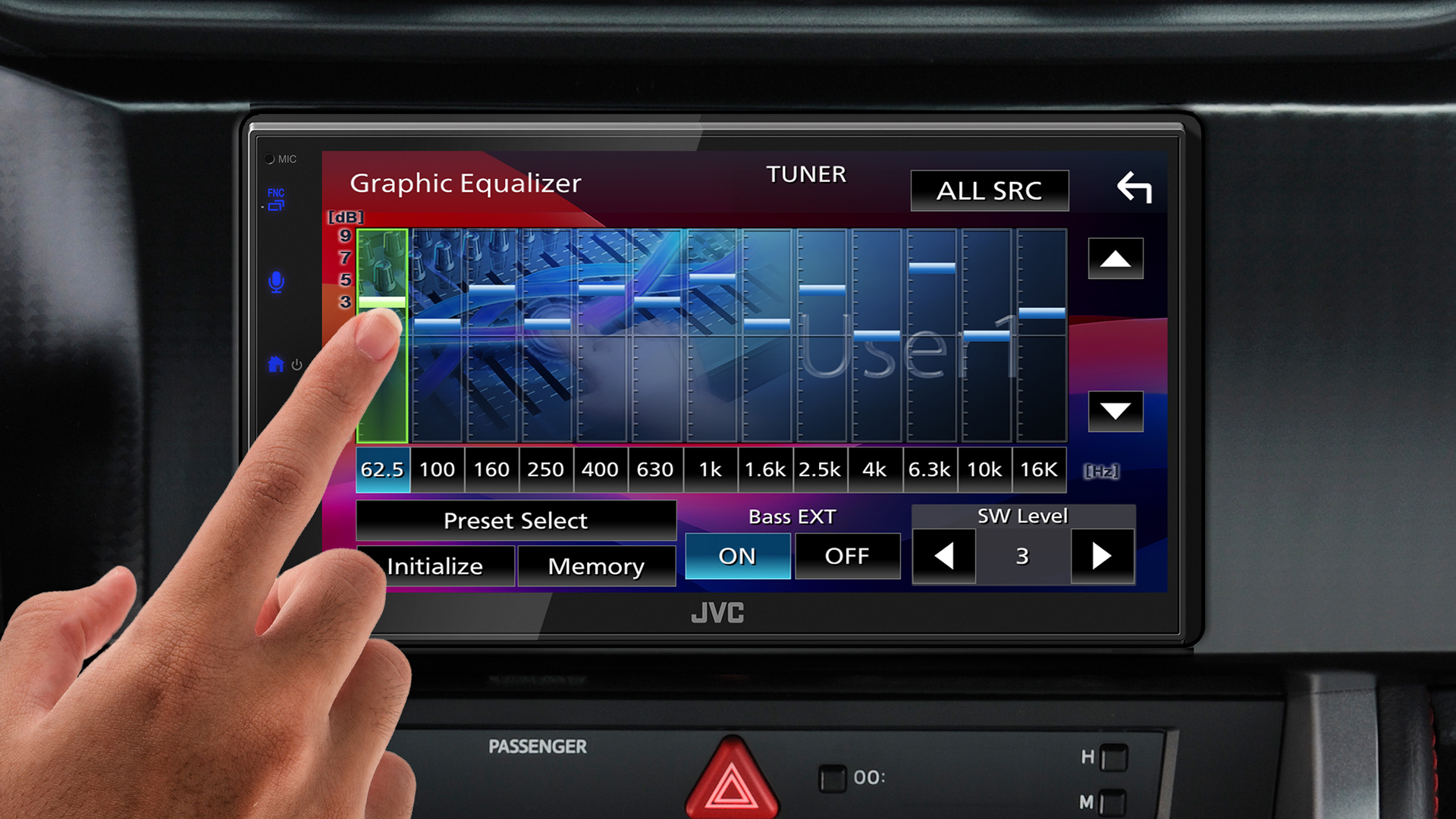

13-Band Equalizer

Use the 13-Band Equalizer to manually adjust the sound to your taste.

Time Alignment GUI

Bluetooth®  WIRELESS TECHNOLOGY

Bluetooth Voice Recognition

Improved Sound Quality with HFP 1.8

Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.


Bluetooth AVRCP1.6 for Versatile Song Selection

In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.

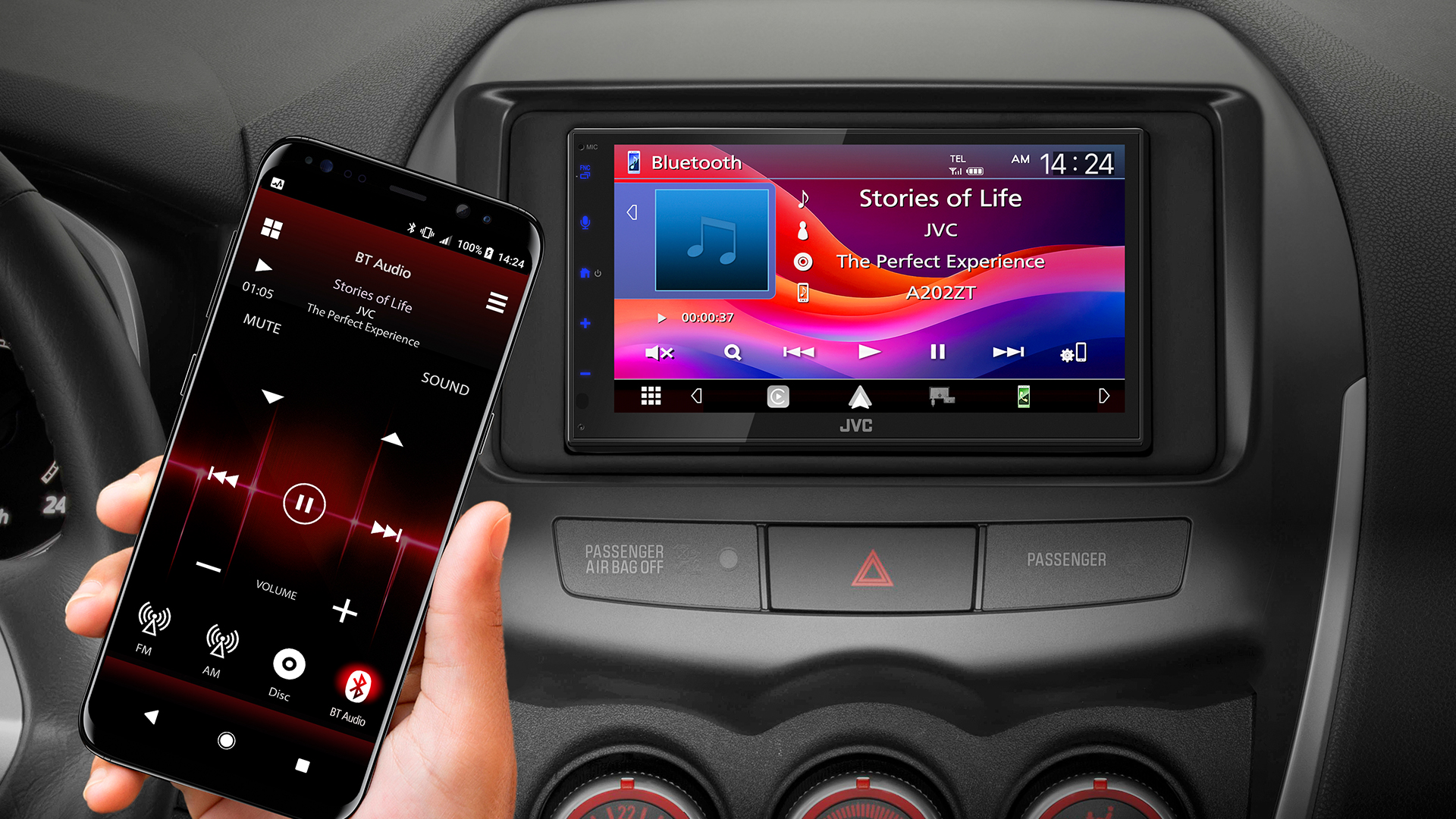

Streaming Music

Listen to popular music applications and music stored on your device with basic audio controls.

bluetooth

Streaming Music



GENERAL

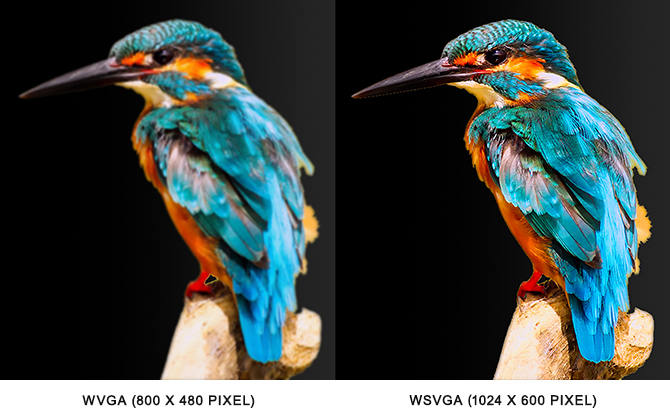

6.8" WSVGA LCD Display

The WSVGA display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.

6.8 WSVGA LCD Display

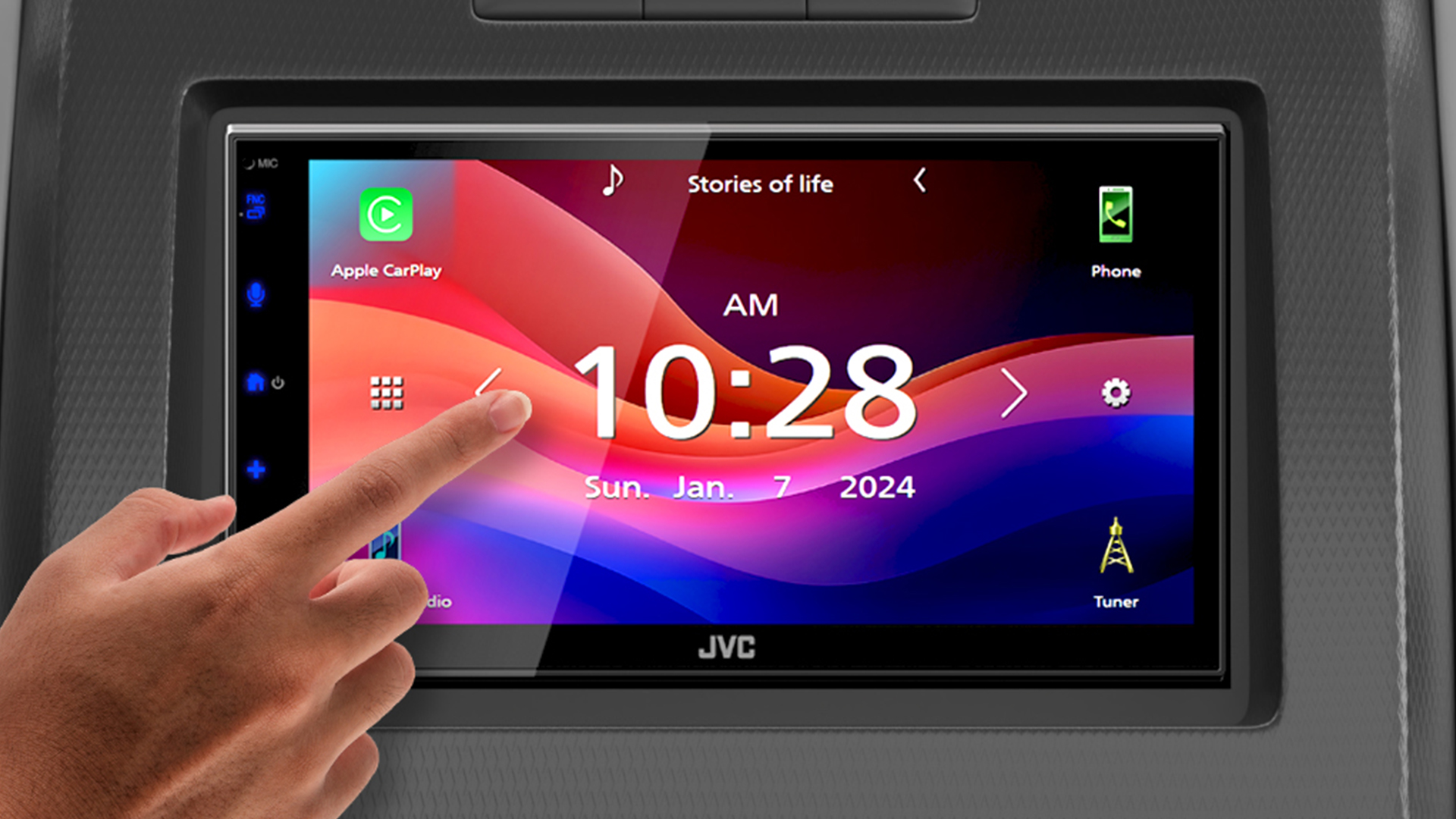

Capacitive Touchscreen

The Capacitive touch screen provides high clarity and uses a superior touch control, requiring lighter contact with greater accuracy.

Capacitive Touchscreen

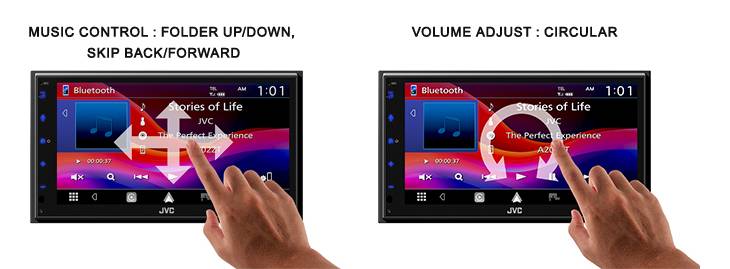

Gesture Touch Control

Just touch and move your finger over the screen for various operations corresponding to your finger-movements (for some sources, the Gesture Touch Control is not available). Intuitive control provides safer operation for in-car entertainment.

Gesture Touch Control

High Current 2.1A Charging

Rapidly charge your smartphone using the USB port, with up to a maximum of 2.1A.
*Compatibility depends on the smartphone.


Short Chassis

Despite a double-DIN display, our unit stands out with its remarkably compact rear chassis, ensuring hassle-free installation and optimal cable management.


Steering Wheel Remote Control Ready

Factory steering wheel control functions can be retained with a third-party adapter (sold separately).


Remote Control (Optional)

Remote control (RM-RK258) is optionally available.


Learning Steering Remote Function

No need for a third party adapter for most Japanese/Korean cars. Click here for details.

Technical Specifications
Manuals
Technical Specifications
Monitor
Screen Size
6.8 inches (diagonal) wide
Touch Panel Type
WSVGA Capacitive
Key Illumination Colour
Blue
Dimmer
Yes
Multilanguage Display
Yes, (English / Spanish / Chinese (Simplified) /Chinese (Traditional) / Thai / Turkish / Arabic / Persian / Malay / Indonesian)
Radio Tuner
FM Frequency Range
87.5 - 108.0MHz
AM Frequency Range
531-1,611kHz
Preset Stations
36(FM:24ch, AM:12ch)
Auto Memory Entry
Yes
Media Playback
MP3 Compatible with Tag
USB
WMA Compatible with Tag
USB
WAV Compatible with Tag
USB
AAC Compatible with Tag
USB
FLAC Compatible with Tag
USB
MPEG-1 / MPEG-2 Compatible
USB
MPEG-4 Compatible
USB
WMV Compatible
USB
H.264 Compatible
USB
MKV Compatible
USB
USB
USB Port
x 1
USB Standard
High Speed
Location
Rear
USB Power Supply
Yes (2.1A High Current Charging)
Bluetooth®
Built-In Bluetooth
Yes
*Available functions depend on mobile phone.
Voice Dialing
Yes
* Voice recognition compatible mobile phone required
Hands Free Call (HFP)
Yes (HFP1.8)
Advanced Audio Distribution Profile (A2DP)
Yes
Audio/Video Remote Control Profile (AVRCP)
Yes
Phone Book Access Profile (PBAP)
Yes
Supported Audio Formats
AAC / SBC
Built-in Hands-Free MIC
Yes
Android Control
Android Auto
Yes (via USB)
* Compatible Android phone and compatible active data plan required.
Mirroring for Android Phone
Yes (via USB)
* Need mirroring app
iPod/iPhone Control
Carplay
Yes (via USB)
*Supported on iPhone 6s, 6s Plus, 7, 7Plus, 8, 8Plus, X, XS, XS Max, XR, 11, 11Pro, 11Pro Max, SE(1st G), SE(2nd G),12, 12 mini, 12Pro, 12Pro Max, 13, 13 mini, 13Pro, 13Pro Max, 14, 14Plus, 14Pro, 14Pro Max, 15, 15Plus, 15Pro, 15ProMax. The service may not be available in certain countries.
Wired screen mirroring
Yes (via USB)
*Need mirroring app
Audio
Maximum Power Output (Front & Rear)
50Wx4
Full Bandwidth Power (at less than 1%THD)
22W x 4
13-Band Graphic EQ
Yes
Preset EQ
Yes (7Preset + 3user)
High-Pass Filter/Low-Pass Filter
Yes/Yes
Bass Boost (Hyper Bass System)
Yes
Speaker Size Control
Yes
Inputs and Outputs
Pre-Out Terminals
2 Preouts+ Sub WF (Mono)
Pre-Output Level
2.5V / 10k ohms
Subwoofer Output with Level/Frequency Control
Yes (Normal / Reverse)
Video Out
x 1 (V:RCA)
Rear view camera Input
Yes
General
Wireless Remote Control
Optional (RM-RK259 required)
Wired Steering Remote Control Ready
Yes
Learning Direct OEM Remote
Yes
Short Chassis
Yes
Installation Size (W x H x D)
178 x 100 x 86 mm
Weight
1.07kg (Including Trim plate)
Unit weight in individual package
1.76kg
